เครื่องวัดทอร์ค LTT-20 Digital Torque Tool Tester

เป็นคนแรกที่รีวิวสินค้านี้

Call for price

สถานะของสินค้า : สินค้าพร้อมส่ง

รหัสสินค้า: 002378

รายละเอียดโดยย่อ

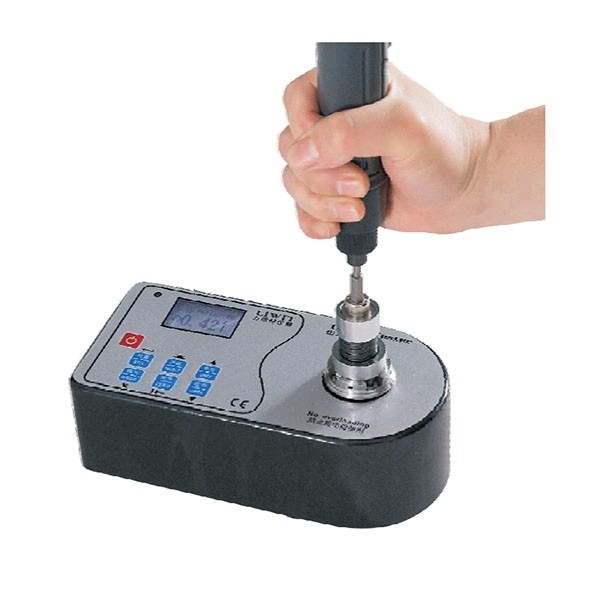

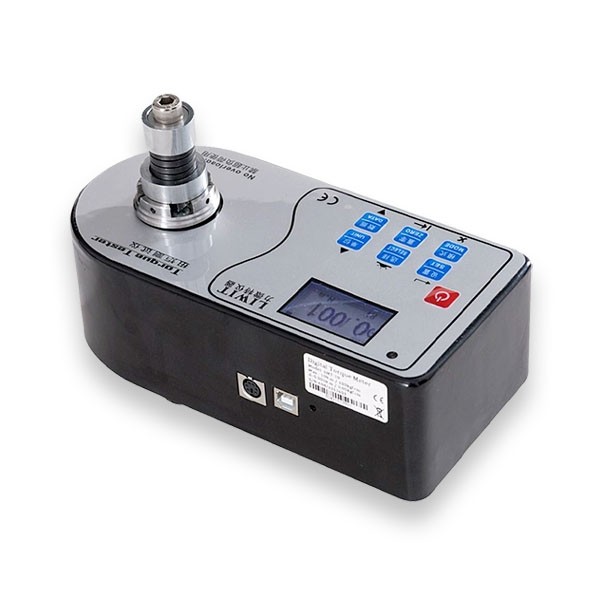

เครื่องวัดทอร์ค LTT-20 Digital Torque Tool Tester

รายละเอียด

รายละเอียด

LTT Series Torque Tool Tester is professionally designed for testing manual, electric and pneumatic
torque screwdrivers, wrenches and other tools. These testers are compact and rugged, suitab for
production environments, present a simple and accurate solution for torque testing. The LTT provides
multifunctional data output, including USB, P/S-6P. USB port is used to connect the PC software for torque
graph; P/S-6P port is used to connect the micro printer for printing saved data.

Features

  • Clockwise and counter-clockwise direction icon indication
  • 3 units of measurements: N.m, kgF.cm, lbF.in automatic conversion
  • 0.3% of full scale and high resolution
  • 3 mondes of measurement: Real time, peak(MPK/APK), SPK
    • MPK: zero the peak by pressing zero key
    • APK: zero the peak automatically as the preset time from 1-10 s
    • SPK: the max. measuring value afthe the pte-time
  • Upper and lower limit setting for tolerance checking with three different colors indicator lamp
  • Backlight and buzzer inside, make screen morn brightness and overload alarm
  • 50 individual readings memory for PK mode, max/min/average display.
  • 50 individual readings memory for AT mode, max/min/average display.
  • Power saving mode of automatioc shutoff without any operation
  • Connected to micro printer and print the saved data
  • USB output, export saved data to the data software and view load graph over time via graph sofware

Digital torque meter LTT series.pdf

Specification

ModelLTT-5LTT-10LTT-20
Capacity5 N.m10 N.m20 N.m
Resolution0.001 N.m0.005 N.m0.01 N.m
Accuracy0.3% FS
UnitsN.m, kgF.cm, lbF.in
Weight2.5 kgs
SizeL205  W100  H80 (mm)
