เครื่องตรวจรังสีแสดงผลผ่านสมาร์ทโฟน Gamma Radiation Detector UDKG-01

มุมมองเพิ่มเติม

เครื่องตรวจรังสีแสดงผลผ่านสมาร์ทโฟน Gamma Radiation Detector UDKG-01

เป็นคนแรกที่รีวิวสินค้านี้

฿:สอบถาม-ขอใบเสนอราคา

สถานะของสินค้า : สินค้าพร้อมส่ง

รหัสสินค้า: 001159

รายละเอียดโดยย่อ

เครื่องตรวจรังสีแสดงผลผ่านสมาร์ทโฟน Gamma Radiation Detector UDKG-01

ขอใบเสนอราคา

รายละเอียด

Turn your smartphone or tablet into dosimeter!
Learn more about Gamma Sapiens at the official website.

Description:

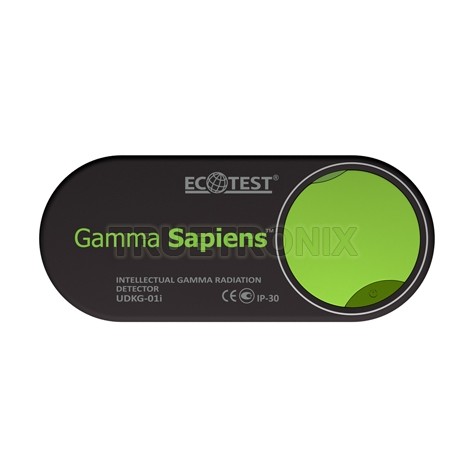

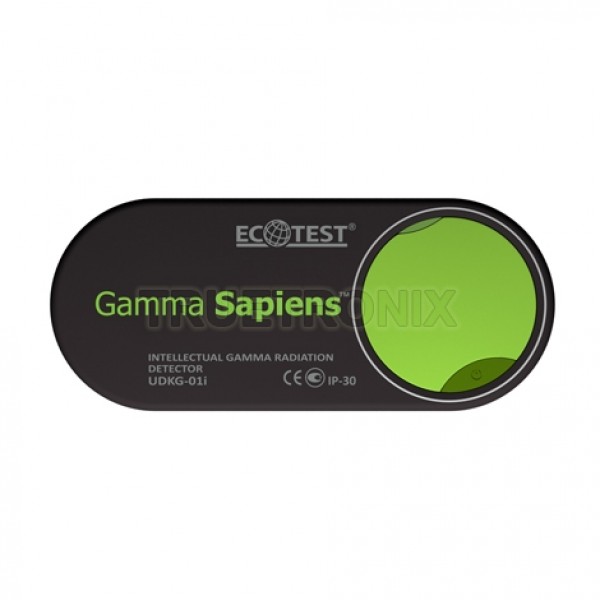

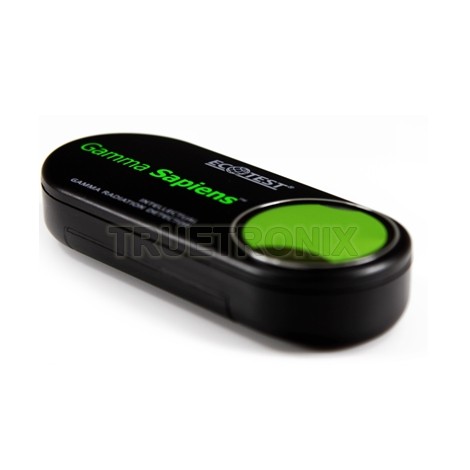

Gamma Sapiens is an innovative device that will turn your smartphone or tablet into dosimeter. From now on you can measure radiation remotely without putting yourself at risk of exposure! Gamma Sapiens dosimeter continuously transfers measurement results via Bluetooth to iPhone, iPad or smartphones and tablets running Android OS. With the help of GS Ecotest application this information is processed, displayed in a user-friendly way and stored in a special database. Gamma radiation detector has its own power supply, so it does not use the battery of smartphone or tablet.

Gamma Sapiens is calibrated after manufacture and conforms to the CE standards

Purpose of Use:

measurement of gamma radiation dose rate (ambient dose equivalent rate)
measurement of gamma radiation accumulated dose (ambient dose equivalent)
transfer of measured values to the smartphone/tablet via Bluetooth

Features:

High dynamics and reliability of measurement results
Built-in Geiger-Muller counter of high sensitivity (it takes just 10-15 s to quickly evaluate normal radiation background level)
Communication with the smartphone/tablet via Bluetooth
Transfer of dosimetric information to the smartphone/tablet in real time
LED-based alarm of connection with the smartphone/tablet
LED-based alarm of the battery discharge
Wide operating temperature range – from -18 °С to +50 °С (0°F to 122°F)

Specifications:

Measurement range of gamma radiation DER	0,1 – 5000 µSv/h
Main relative permissible error limit of gamma radiation DER measurement with confidence probability of 0.95 (calibrated relative to 137 Cs)	25+2/Н(10)%, where H(10) is a numeric value of the measured DER in µSv/h
Measurement range of gamma radiation DE	0,001 – 9999 mSv
Main relative permissible error limit of gamma radiation DE measurement with confidence probability of 0.95	25%
Energy range of registered gamma radiation	0,05 – 3,00 MeV
Energy dependence of the detector readings at gamma radiation DER and DE measurements in the energy range from 0.05 MeV to 1.25 MeV	±25%
Range of the Bluetooth interface for connection with the smartphone/tablet, not less than	5 m
Battery life (ENERGIZER AAA×2 of 1280 mAh capacity) under natural background radiation conditions, not less than	60 hours
General operating supply voltage of the detector from two AAA batteries	3,0 V
Dimensions, not more than	19х40х95 mm
Weight without batteries, not more than	0,05 kg

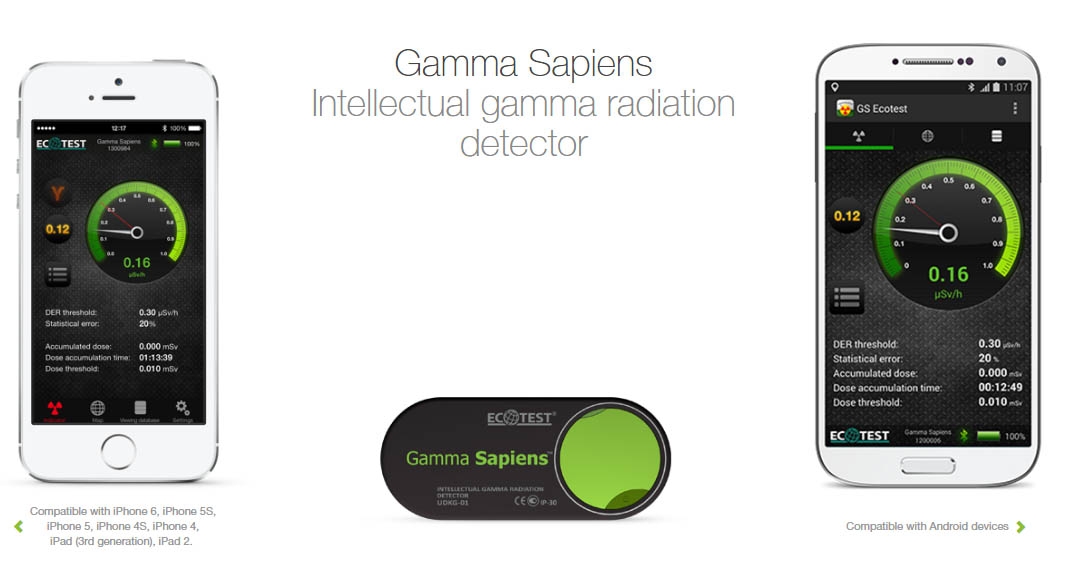

GS Ecotest application provides:

information about the radiation level and accumulated dose which is transferred from Gamma Sapiens detector to the smartphone/tablet via Bluetooth in real time
display of measurement results in one of 4 different graphic representations
representation of collected data on a map with GPS coordinates
setting up one or more dose and dose rate threshold levels. When the threshold level is exceeded, light, audio, and vibration alarms will be actuated
data storage in a relational database
view of stored data in a database within a certain period of time
possibility to share measurement results via Facebook and Twitter (for iPhone and iPad only)
automatic track formation of dosimetric measurements by different user-defined criteria (for Android OS smartphones/tablets only)
automatic track formation of dosimetric measurements by different user-defined criteria (for Android OS smartphones/tablets only)
making and receiving calls, sending and receiving messages, starting and using other applications, etc., without interrupting the process of measurement and loss of data

Compatible with: iPhone 7, iPhone 6S, iPhone 6, iPhone 5S, iPhone5, iPhone 4S, iPhone 4, iPad (3rd generation), iPad 2.

GS Ecotest can be installed on the Android smartphone or tablet which features the following:
