เครื่องวัดแรงบิดฝาขวด LBT-10 Bottle Tester

รายละเอียด

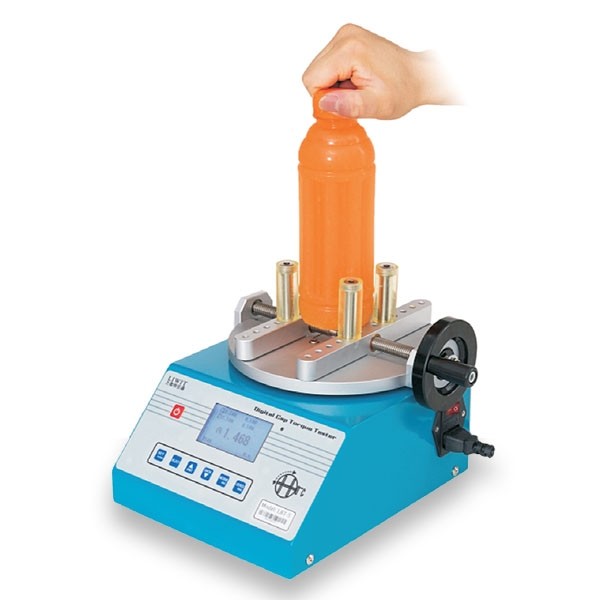

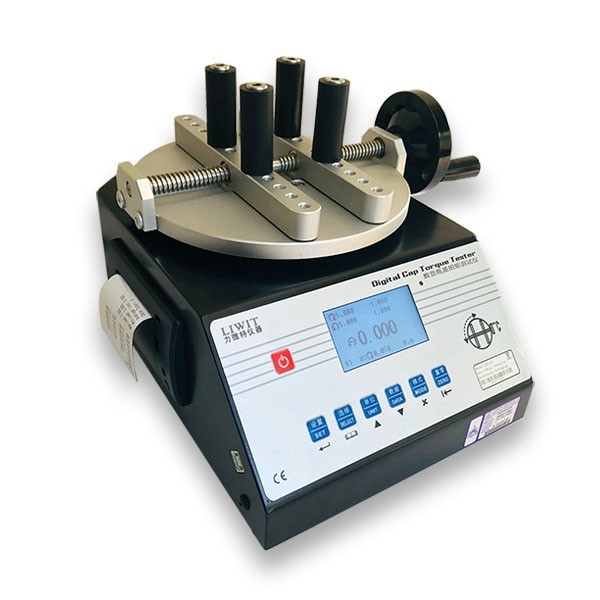

LBT Series Bottle Cap Tester are designed to measure the torque of bottle caps. Adjustable posts
can grip wide range of bottle shapes and size effectively. Simple operation and easy to use, large
easy-to-read LCD display, big data memory.

Features

Clockwise and anticlockwise direction icon indication
3 units of measurements: N.m, kgF.cm, lbF.in, automatic conversion
0.3% FS high accuracy and resolution
4 modes of measurement: Real time, peak, save, average
Average mode: calculates average readings over time
Upper and lower limit setting for tolerance checking with three different colors indicator lamp
Backlight and buzzer inside, make screen morn brightness and overload alarm
Individual data memory for up to 100 readings
Power saving mode of automatioc shutoff without any operation
Micro printer inside and print saved data.
App.display data on the phon via Bluetooth wireless connection
USB output, export saved data to the data software and view load graph over time via graph sofware

Bottle Cap Tester LBT Series.pdf

Specification

Model	LBT-1	LBT-2	LBT-5	LBT-10
Capacity	1 N.m	2 N.m	5 N.m	10 N.m
Resolution	0.0005 N.m	0.001 N.m	0.001 N.m	0.005 N.m
Accuracy	0.3% FS
Units	N.m, kgF.cm, lbF.in
Weight	9 kgs
Dimension	28 x 21 x 20 cm
