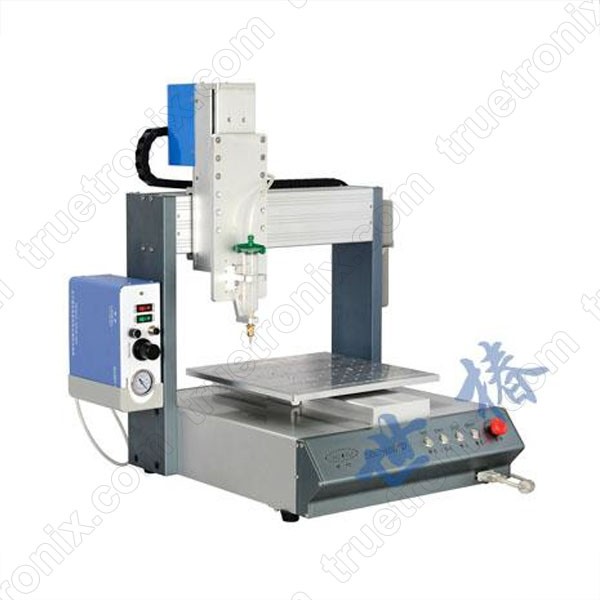

SEC-300EDN
Features:
- Operation with handheld LCD panel teach box, which is easy to program and learn.
- Functions of drawing points, lines, surfaces, arc, circle and consecutive interpolation of irregular curves to realize any 3D non planar trajectory path.
- Excellent teaching function to support array, graphical browsing, three dimensional elliptic, common graphical library inserting, group editing and so on.
- MINISD file storage with high speed and 2G capacity can store 999 dispensing process documents.
- The size of glue, speed of glue spread, dispensing time, and time of halting dispensing can be set by parameters.
- With Second special dispensing controller, glue outflow is quite stable without leaking and dripping.
- The function of automatic gel prevention can effectively prevent glue curing from jamming needle head.
- Powerful PC compatibility with the Logoshop software can import mainstream design software (such as Auto CAD, Coral Draw, etc.) to generate a variative of file formats (such as, .NC, .AI, .DXF, .JPG, BMP, .scanner, etc.)
- It is applied to fluid dispensing, such as, UV glue, AB glue, COB(black glue), white glue, EMI conductive glue, silicon, epoxy resin, instant glue, silver glue, red glue, paste, thermal grease, welding control paste, transparent paint, screw fixative and so on.
Specifications:
Model | SEC-200EDN | SEC-300EDN | SEC-400EDN | SEC-500EDN |
Work Area (mm) | 200(X)*200(Y)*100(Z) | 300(X)*300(Y)*100(Z) | 400(X)*400(Y)*100(Z) | 500(X)*500(Y)*100(Z) |
Size (mm) | 390(L)*424(W)*560(H) | 490(L)*528(W)*679(H) | 590(L)*628(W)*679(H) | 690(L)*728(W)*679(H) |
Y/Z(Max load) | 7kg/3kg | |||
Travel speed | 400mm/sec(XY)/200mm/sec(Z) | |||
Drive mode | Stepping motor + belt + precise linear guide rail | |||
XYZ Repeatability | ±0.025mm | |||
Resolution | 0.01 | |||
Program capacity | 999 parameter files, 65535 points per file) | |||
Operation system | LCD panel /Teach pendant | |||
Motor | Japan micro stepping motor | |||
Movement pattern | 3 axis point to point, continuous line, arc | |||
I/O Signal ports | 4 inputs/4 outputs | |||
Power supply | AC220V 50/60Hz 0.5kw | |||
Work condition | Temperature 0-40℃;humidity 20-90% | |||
Weight | 25kg(About 25kg) | 35kg(About 35kg) | 45KG(About 45KG) | 55KG(About 55KG) |
Configurations:
Title | Unit | QTY | Remark |
Motor | kit | 3 | Micro stepping motor |
High precision dispensing valve | pc | 1 | Optional |
Movement controller | kit | 1 | Second |
Automatic dispensing software | kit | 1 | Second independent R&D |
Precise dispensing controller | kit | 1 | Optional |
