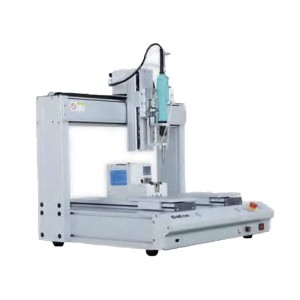

Screw Fastening Robot greatly improves the work efficiency and the screw fastening consistancy & reliability. With the advanced Teaching Pendant, operators can set up by themselves all the process parameters such as the screw coordinate and screw types, etc. It can adapt to all sorts of difficult screw fastening process and achieve the complete automation.
FEATURES:
1.The stepper motor drive and the advanced motion control algorithm for the five-axis effectively improve the positioning accuracy and repeat precision.
2.Smart detection function: when a screw is missing or the screw does not fill in place, the machine will give an alarm.
3.It guarantees the high precision of screw fastening which cannot be achieved by the traditional manual screw fastening. Besides, it improves the production efficiency and reduces the labor cost.
4.Suitable for most of the screws, especially the stainless steel screws.
5.It is easy to learn the operation. One operator can operate several machines at the same time.
6.The rail of the screw feeder is adjustable. (Applicable screws: M1.5 – M5.0)
SPECIFICATIONS:
Model | LS-300 |
Voltage | 110V / 220V AC |
Drive Mode | 3-Axis precision step motor |
Operating Range (X * Y * Z) | 300 x 300 x 80mm |
Movement Speed | X * Y Axis: 0.1~800mm/sec, Z Axis :0.1~400mm/sec |
Repeatability Accuracy | ±0.002mm (X * Y * Z) |
Minimum Analysis | 0.01mm (X * Y * Z) |
Maximum Load Weight | 8kgs (for work platform) |
Program Capacity | Max 255 Programs |
Operate Temperature | 10℃~40℃ |
Operate Humidity | 20~90% |
External Dimensions | 620mm x 660mm x 770mm |
Accessories | one screw feeder, one screwdriver. |
Weight | about 60kgs |
