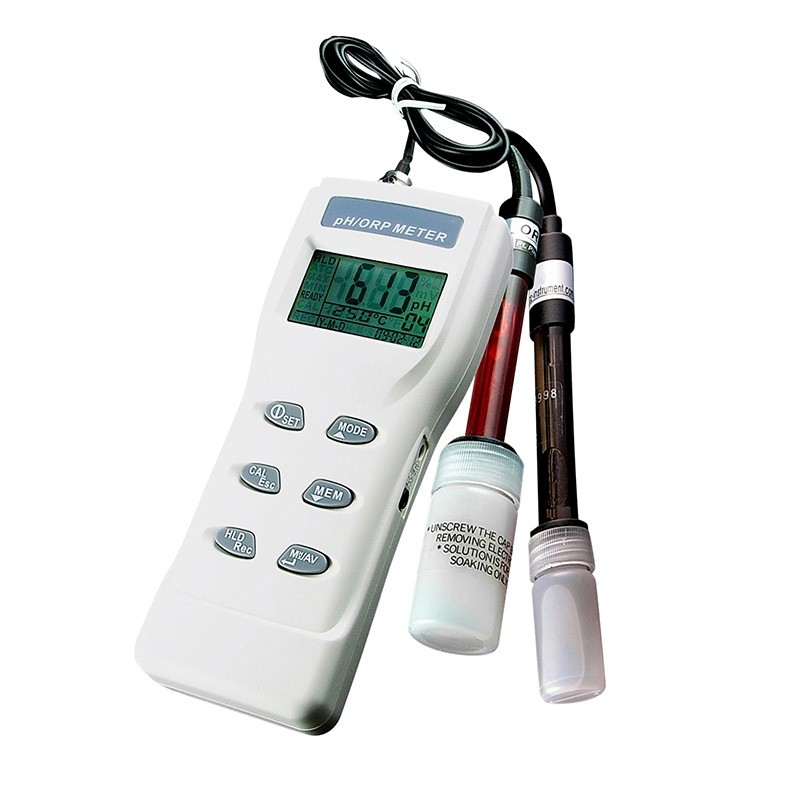

ORP-8651 measures pH, ORP and temperature accurately with advance features such as multi-display LCD screen wherein it simultaneous display (pH/mV & temperature, memory counter, time real-time clock and mode indicators). The whole set comes complete with pH4, pH7 & pH10 buffer solutions, pH electrode with ATC, ORP electrode and multi-purpose plastic hardened carrying case & 1.5V batteries! Plus, now you have the option to get the RS232 Software CD and cable for datalogging and direct saving of your gathered readings to your PC.
Features:
- Can store each parameter up to 99 record, 99 PH & 99 mV/ORP
- Measures pH, mV and Temperature
- Integrated pH, ORP and Temperature measurements in one meter
- Multi-display LCD screen
- Accurate and high resolution
- °C/°F switchable with real-time display
- Front panel calibration adjustments
- With hold function that freezes displayed reading
- Min/Max values review of memorized data
- With pH automatic buffer recognition to avoid errors during calibration
- Allows automatic or manual temperature compensation
- 3-points pH calibration (maximum 5 points pH calibration)
- With memory recall and real-time clock setting features
- With RS232 receptor for online logging or upload data to PC for analysis (optional RS232 CD & cable is not included in the set)
- With Backlight feature for dark environment operation
- Easy to view probe calibration data
- With "Ready" icon on LCD to indicate if reading is stable or not
- Error indicators during calibration, hold, max & min, record, Low bat
- Meter can be powered by 4pcs of AAA batteries (included in the set) for better mobility or by a 9V DC power adaptor for long time use (power adaptor is not included in the set)
- Auto power off with disable feature
- With provision for tripod mounting
- With safety approval for a long and trouble-free life
- Comes with pH electrode with ATC, ORP electrode, multi-purpose plastic hardened carrying case and 3 pH buffer solutions(pH4, pH7 & pH10)
- Now comes with Optional RS232 Software CD and Cable (not included in the set)

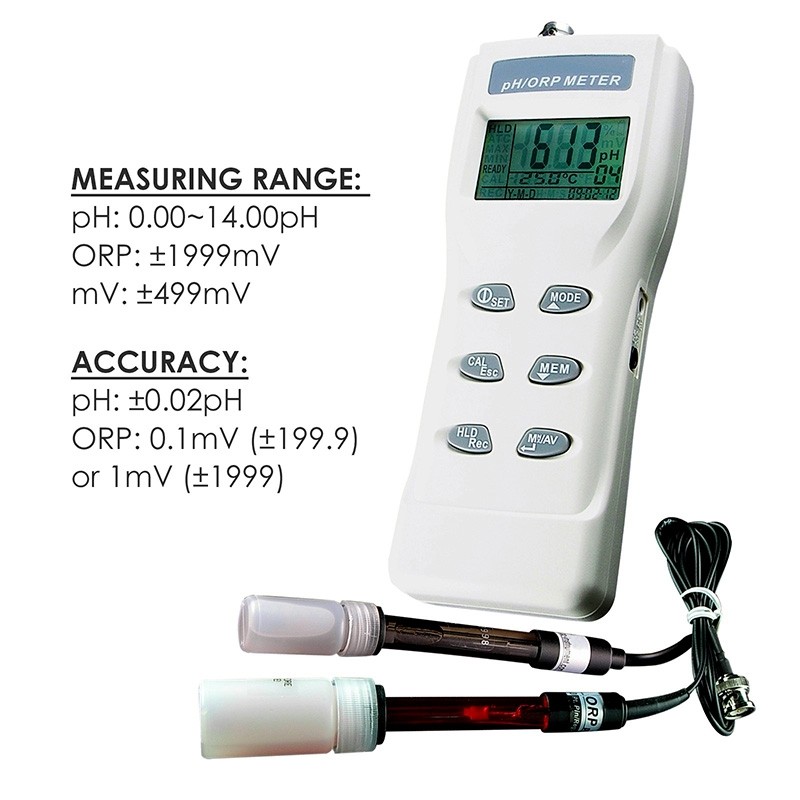

Specifications:
- PH MEASUREMENT
- measuring range : 0.00~14.00
- high resolution : 0.01pH
- accuracy : ±0.02pH
- ORP MEASUREMENT
- measuring range : -1999 ~ +1999m
- resolution : 0.1mV(-199.9~+199.9) or 1mV (-1999~+1999)
- accuracy : ±0.2mV(-199.9~+199.9) or ±2 mV (-1999~+1999)
- MV MEASUREMENT
- measuring range: -499 ~ +499mV
- Manual&Automatic Temperature Compensation
- Calibration: Max 5 points automatic buffer recognition
- With pH Slope/Offset display
- Slope Alarm: <75% or >115%
- Offset Alarm: Out of ±60mV
- Operating Temp : 0~50°C (32~122°F), Max. 80%RH.
- Storage Temperature: -20~60°C , Humidity: up to 95% without condensation
- Low battery indicator
- pH electrode: 1meter cable length
- Dimension(meter) : 175 x 70 x 33mm
- Weight: approx. 150g (meter only)m

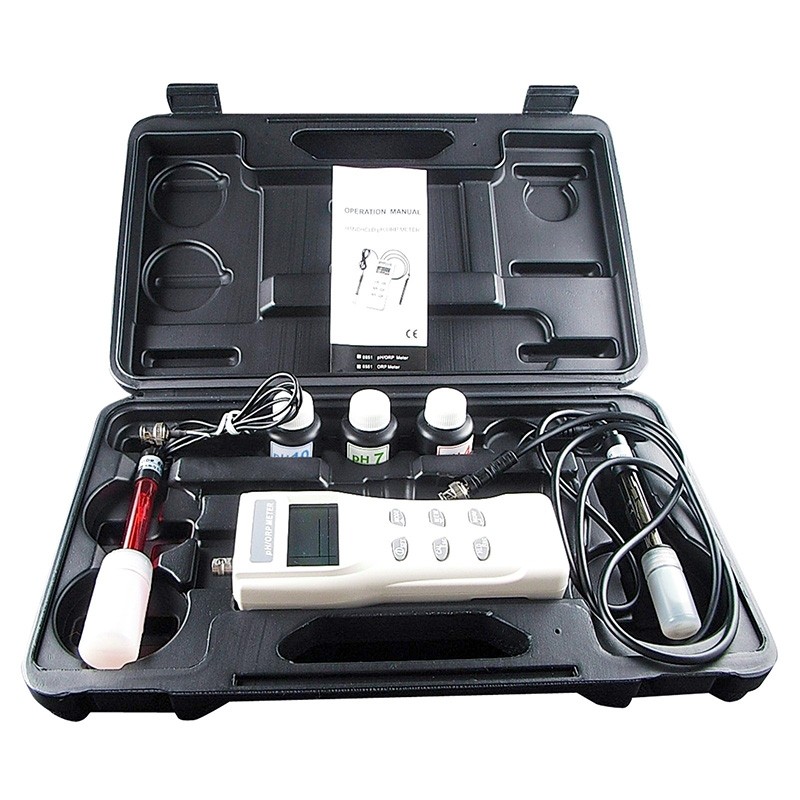

Set Includes:
- 1 x Professional 3-in-1 PH, ORP mV, Temperature Meter
- 1 x FREE pH electrode with ATC
- 1 x FREE ORP electrode
- 1 x FREE PH4, PH7 & PH10 Buffer Solutions
- 1 x FREE Multi-purpose plastic carrying case
- 4 x FREE 1.5V AAA Battery
- 1 x English Instruction manual
