CM86B แคล้มป์มิเตอร์ 1000 แอมป์ Clamp Meter 1000A with iFlex 3000A

รายละเอียด

Description:

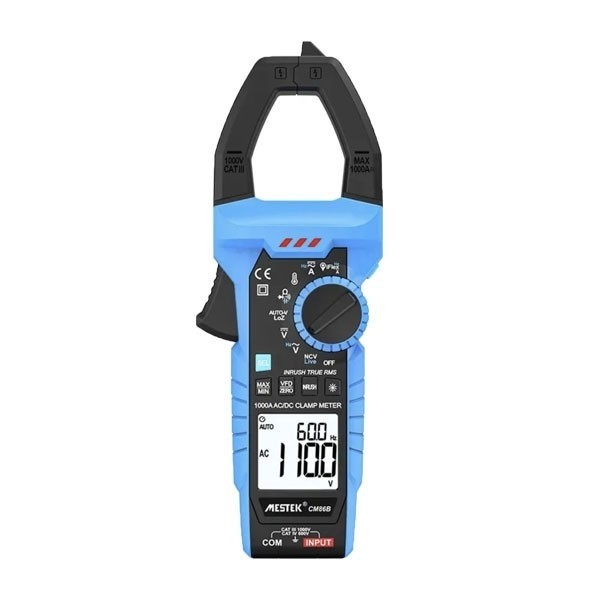

The CM86B clamp meter measures DC currents up to 1000A. It also supports K-type temperature testing up to 1000°C. With a CAT III 1000V safety rating, it is ideal for industrial use. Its flexible jaw opens to 42mm for larger conductors. It also tests continuity and resistance, including buzzer resistance.

Specifications:

DC Voltage: 600mV/6V/60V/600V/1000V,±(0.8%+3)
AC Voltage: 6V/60V/600V/750V,±(1.0%+5)
DC Current: 60A/600A/1000A,±(2.5%+10)
AC Current: 60A/600A/1000A,±(2.5%+10)

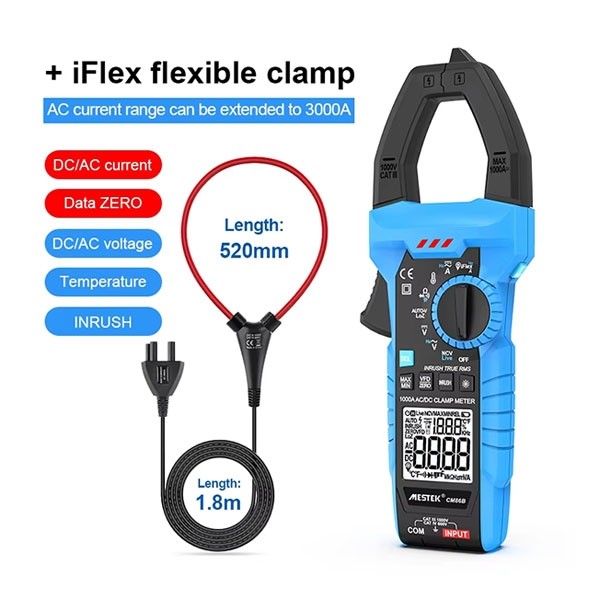

iFlex flexible clamp: 3000A(Optional),±(3.0%+5)
Inrush Current: 1000A,±(10%+60)
Resistance: 600/6kΩ/60kΩ/600kΩ/6MΩ/60MΩ,±(2.0%+5)
Capacitance: 600nF/6μF/60μF/600μF/6mF/60mF,±(5.0%+10)
K-type Temperature: -20°C-1000°C1-4“F-1832°F,±(2.0%+2)
Continuity Buzzer: <30Ω
Jaw Opening: 42mm
True-RMS: Yes
Data Hold: Yes
Backlight: Yes
Flashlight: Yes
K-type Temperature: Yes
Auto Power off: Yes
NCV: Yes
Input Impedance: 1MΩ
Low Battery Indication Lower than: 2.4V
Batteries: 2*1.5V AAA
Size: 254*92*45(mm)
Weight About: 450g
Safety Level: EN61010-2-032,CAT Ⅲ 1000V
Standard Accessories: Digital Clamp Meter-Probe-Carrying, Bag-Batteries-User Manual-Color Box
