RadSpace Automated system of remote radiation monitoring เครื่องวัดรังสี

รายละเอียด

Provides continuous automated radiation monitoring in an unlimited number of points
Batch communication with fixed or portable server via GPRS channel
Generation of emergency and warning notifications when DER measurement results of the specified threshold levels are exceeded

Description:

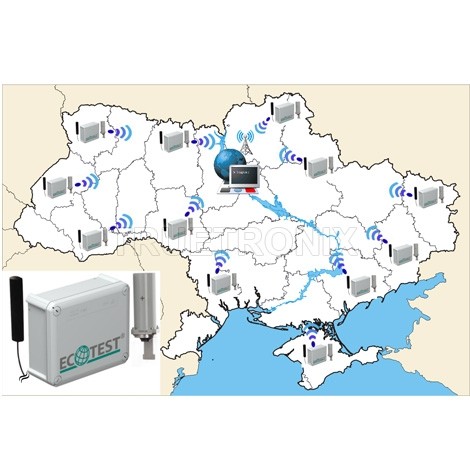

RadSpace is a unique two-tier system for remote radiation monitoring. It is advanced radiology solution, which allows the operator to wirelessly receive information about radiation level from multiple remote monitoring points in real time. The radiation monitoring system is fully flexible due to lack of limitations to the number of monitoring points and the distance of data transmission. Therefore, RadSpace can be easily adapted to specific needs of every customer.

Besides other applications RadSpace radiology solutions may be used for the purposes of environmental inspectorates, weather stations and national automatic systems for continuous radiation monitoring.

The system may include BDBG-09, BDBG-09 Water-Resistant and BDBG-15S intelligent detecting units of gamma radiation.

Purpose of use:

Measurement of ambient dose equivalent rate (DER) of gamma radiation
Display of measurement results on a PC screen

Features:

Remote continuous computer-aided radiation monitoring of the environment.
Acceptance and display of measurement results of ambient dose equivalent rate (DER) from BDBG type detecting units, located at considerable distances from the server.
Acceptance and display of measurement results of ambient dose equivalent rate (DER) from BDBG type detecting units to the fixed or portable server (via GSM modem).

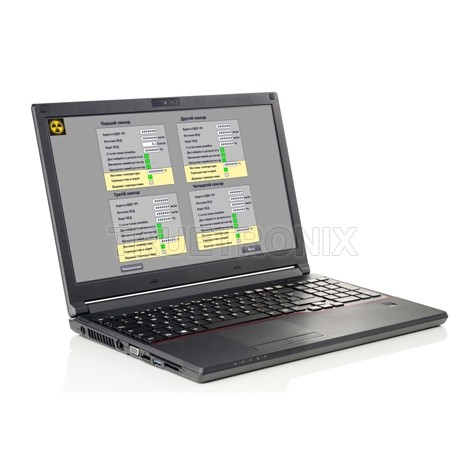

Real-time visualization of measurement results in numeric and graphic form.
Setting of a separate threshold level for each detecting unit.
Generation of emergency and warning notifications when DER measurement results of the specified threshold levels are exceeded.
Storage of DER measurement results on a PC hard drive.
Possibility to expand functionality through integration of devices, equipped with RS-485 interface (e.g., weather stations or other types of detectors).

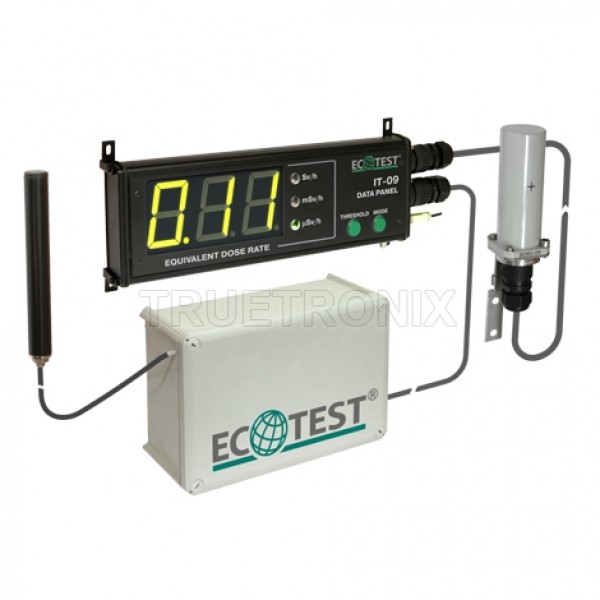

For assessment of radiation situation directly at the installation site of the monitoring point, it is possible to connect IT-09 (T) data panel or to display the information on the PC screen with the help of RadMonitor or Ecotest software.
Possibility to equip the system with reserve power supply to maintain its working efficiency in case of electric power supply shortages.
Generation of printable reports.

Specifications:

Name	Unit of measurement	Standardized values according to the technical specifications
Number of gamma radiation DER measurement channels per one processing unit	pcs	1-4
Method of data transfer from the monitoring points to the server		Batch communication via GPRS channel
Instrument for gamma radiation DER measurement		BDBG-09 detecting unit of gamma radiation
Measurement range of gamma radiation DER	μSv/h	0,1 – 10⁷ (0,1 – 10⁸ on demand)
Main relative permissible error limit of gamma radiation DER measurement when calibrated to 137Cs with confidence probability of 0.95	%	±(15+1/H(10)), where H(10) is a numeric value of measured DER equivalent to μSv/h
Energy range of registered gamma radiation	MeV	0,05 – 3,00
Energy dependence of measurement results during gamma radiation DER measurement in the energy range from 0.05 MeV to 1.25 MeV	%	±25
Operating supply voltage range	VAC	220
Dimensions of the processing unit	mm	Depending on the system’s functionality and protection (IP) requirements. Minimal approximate dimensions are 300х120х200
Dimensions of the detecting unit without fastening elements	mm	170x60x60

Operating conditions:

Operates on the IBM compatible computers running Windows 7 Professional

The table offers specifications of the system which includes BDBG-09 detecting units of gamma radiation. Check product pages of other detecting units for their specifications.

Delivery kit:

BDBG type detecting units of gamma radiation (1 – 4 pcs. per one processing unit)
Processing units of dosimetric information with GPRS antenna according to customer’s requirements
«EcotestMonitor» software for server
