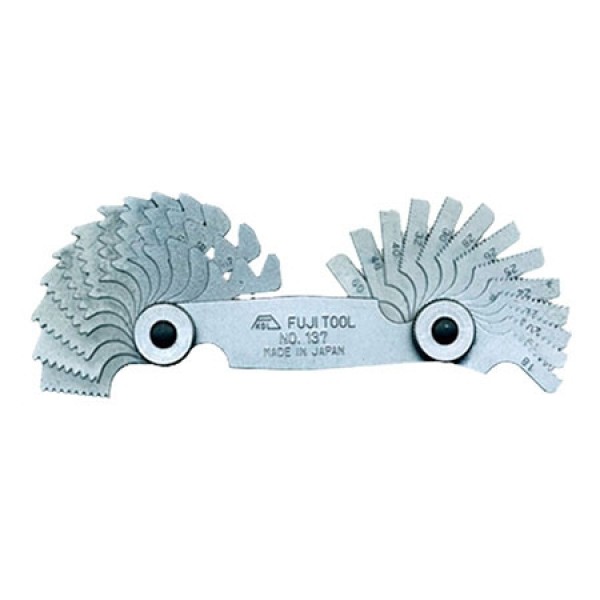

Screw Pitch Gauges เกจวัดระยะเกลียวน็อตสกรู

รายละเอียด

FEATURES:

The number on each leaf represents the pitch size.
Metric indicates the distance between each pair of screw thread, while Whitworth and Unified direct to the number of threads per inch (25.4mm)

SPECIFICATIONS:

Metric (Angle: 60 °)

Code No.	Model No.	Leaves	Size Composition/Contents
02-107	No.156	28	0.25 0.3 0.35 0.4 0.45 0.5 0.55 0.6 0.65 0.7 0.75
			0.8 0.85 0.9 1.0 1.1 1.2 1.25 1.3 1.4 1.5 1.6
			1.7 1.75 1.8 1.9 2.0 2.5
02-109	No.158	17	0.5 0.75 1.0 1.25 1.5 1.75 2.0 2.5 3.0 3.5
			4.0 4.5 5.0 5.5 6.0 6.5 7.0
02-110	No.159	22	1.0 1.5 2.0 2.5 3.0 3.5 4.0 4.5 5.0 5.5 6.0
			6.5 7.0 7.5 8.0 8.5 9.0 9.5 10.0 10.5 11.0 11.5
02-111	No.160(ISO)	23	0.2 0.25 0.35 0.4 0.45 0.5 0.6 0.7 0.75 0.8 1.0
			1.25 1.5 1.75 2.0 2.5 3.0 3.5 4.0 4.5 5.0 5.5 6.0
02-129	No.138(JIS)	21	0.25 0.3 0.35 0.4 0.45 0.5 0.75 0.9 1.0 1.25 1.5
			1.75 2.0 2.5 3.0 3.5 4.0 4.5 5.0 5.5 6.0

Whitworth (Angle : 55 °)

CodeNo.	ModelNo.	Leaves	Size Composition/Contents
02-105	No.137	26	4 4 1/2 5 6 7 8 9 10 11 12 13 14 16 18
			19 20 22 24 25 26 28 30 32 40 48 60
02-127	No.476	30	3 1/2 4 4 1/2 5 6 7 8 9 10 11 12 13 14 16
			18 19 20 22 24 25 26 28 30 32 36 40 44
			48 50 60
02-114	No.163	52	4 4 1/2 5 6 7 8 9 10 11 12 13 14 16 18 19
			20 22 24 25 26 28 30 32 36 40 48 60 62
			0.25 0.3 0.35 0.4 0.45 0.5 0.6 0.7 0.75 0.8 0.9
			1.0 1.25 1.5 1.75 2.0 2.5 3.0 3.5 4.0 4.5 5.0
			5.5 6.0(mm)

Unified (Angle : 60 °)

Code No.	Model No.	Leaves	Size Composition/Contents
02-101	No.4	24	4 4 1/2 5 5 1/2 6 7 8 9 10 11 11 1/2 12 13
			14 16 18 20 22 24 26 27 28 30
02-103	No.6	30	4 4 1/2 5 5 1/2 6 7 8 9 10 11 11 1/2 12 13
			14 15 16 18 20 22 24 26 27 28 30 32 34
			36 38 40 42
02-104	No.40	22	9 10 11 11 1/2 12 13 14 15 16 18 20 24
			26 27 28 30 32 34 36 38 40
02-120	No.169	51	4 4 1/2 5 5 1/2 6 7 8 9 10 11 11 1/2 12 13
			14 15 16 18 20 22 24 26 27 28 30 32 34
			36 38 40 42
			0.4 0.45 0.5 0.6 0.7 0.75 0.8 0.9 1.0 1.25 1.5
			1.75 2.0 2.5 3.0 3.5 4.0 4.5 5.0 5.5 6.0(mm)
02-128	SAE	34	3 3 1/2 4 4 1/2 5 5 1/2 6 7 8 9 10 11 12
			13 14 16 18 20 22 24 26 28 30 32 36 40
			44 48 50 56 60 64 72 80
02-123	No.472	51	4 4 1/2 5 51/2 6 7 8 9 10 11 11 1/2 12 13
			14 16 18 20 22 24 25 26 27 28 30 32 34
			36 40 42 44 46 48 50 52 54 56 58 60 62
			64 66 68 70 72 74 76 78 80 82 84
02-124	No.473	30	6 7 8 9 10 11 11 1/2 12 13 14 15 16 18
			20 22 24 26 27 28 30 32 34 36 38 40 42
			48 50 56 60
02-125	No.474	28	4 4 1/2 5 6 7 8 9 10 11 11 1/2 12 13 14
			16 18 20 24 27 28 32 36 40 44 48 56 64
			72 80
