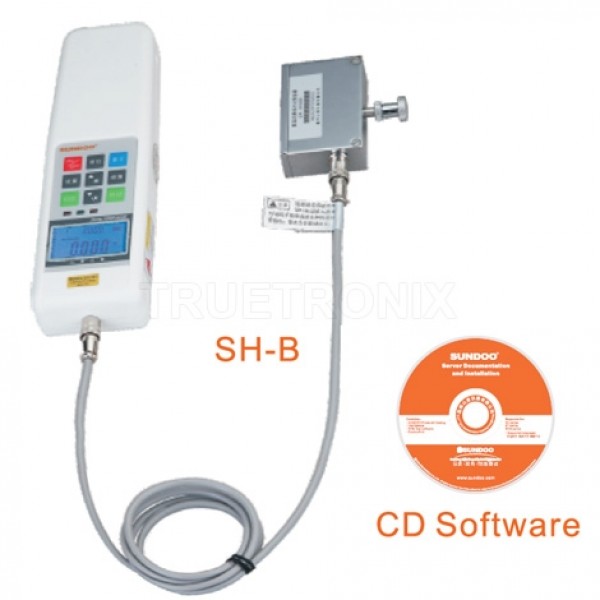

SH-B Series Digital Push Pull Force Gauge
This force gauge is compact and multifunctional test gauge with split-tiype design.Is is applied for conpression and tension test/insertion and extraction test/breaking test. Digital display, high accuracy and high resolution, high-efficiency test performance.
Characteristics
- Split-type design for special product test.
- Peak hold time (1-10 seconds) setting.
- Upper and lower limit setting, red/green indicator lights and buzzer alarm.
- 10 test value storage, average calculation function.
- Select units: N/Kgf/1bf.
- Auto-off time setting (1-60 minutes) without operation.
- RS232 output, connection to software, force curve view, data saving for analysis and printing.
- Patent number: ZL200620013022.2/ZL200610072362.7.
- CD Software

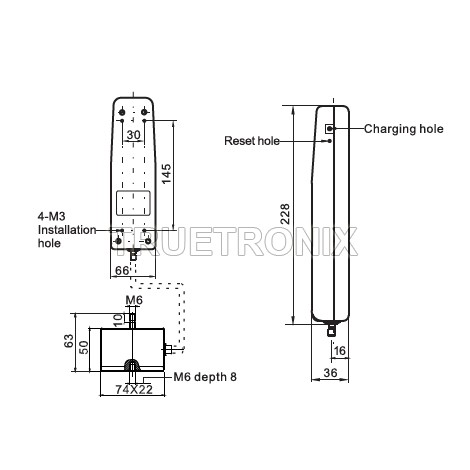

- Sensor Dimension
Model | SH-2B | SH-5B | SH-10B | SH-20B | SH-50B | SH-100B | SH-200B | SH500B |
Capacity | 2N | 5N | 10N | 20N | 50N | 100N | 200N | 500N |
Resolution | 0.001N | 0.001N | 0.005N | 0.01N | 0.01N | 0.05N | 0.1N | 0.1N |
Sensor Type | Sensor outside | |||||||
Test range | 10%~100% FS | |||||||
Accuracy | Within ±0.5% | |||||||
Power | 8.4V 1.2Vx7 Nickel hydride battery; Charging time: about 4 hours; Continuous use for 40 hours after charging fully; Standby time: 3 months; Battery life ≥300 times | |||||||
Adaptor | Input: AC 220V 50Hz output: DC 12V 300mA | |||||||
Weight | About 1.2kg |
