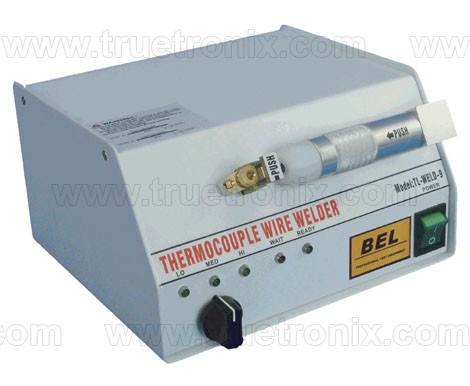

Thermocouple Wire Welder TL-WELD9 เครื่องเชื่อมลวดเทอร์โมคัปเปิล

รายละเอียด

DESCRIPTIONS:

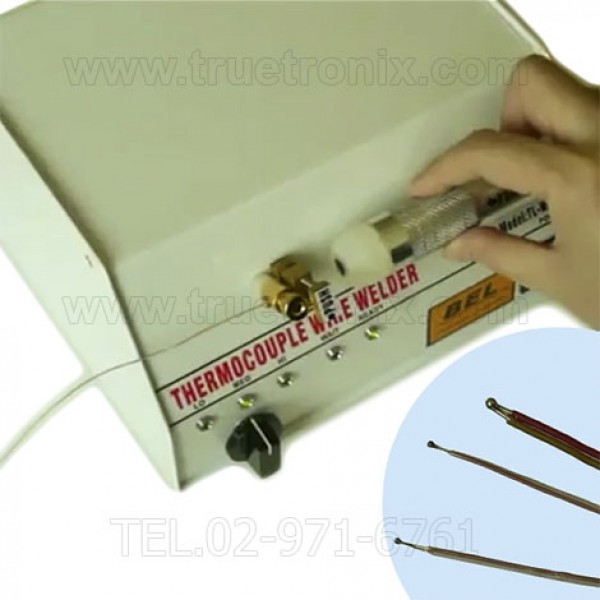

BEL Thermocouple Welder Model: TL-WELD9 is design for manufacturers and laboratory for the production of commercial grade thermocouple junctions, and for users of large numbers of exposed junction thermocouple such as test and development laboratories where multipoint temperature sensing of test pieces is required. It has a safety welding pen design and do not need to use pliers any more. No special skills are needed and most people will be capable of producing quality work with minimal practice. The instrument can be operated via the front panel. It is portable welding machine that allow the thermocouple wires to bond into freestanding beads. Operator only takes a few seconds to bond the standard thermocouple wire into temperature sensors. This model is suitable for welding any type thermocouple wires from AWG40-AWG19 (0.1~1.1 mm) in diameter. A satisfactory thermocouple junction is produced without using argon, Just 3 steps you can weld a quality bonded thermocouple wire sensor. It has been selected by many famous laboratories in global. We Provide Global Speed Delivery Service.

FEATURES:

Safety Welding Pen Design
For Type K/J/E/T/N/R/S/B wire in one machine
Wire Gauge from AWG40 ~ AWG19 (0.1mm~1.1mm)
High Quality Wire Bonded
Charging Time at Max Energy less than 3 seconds
3 Position Energy Range Selection (LO/MED/HI)
International Voltage Market
Used by many famous laboratories & manufacturer in global
We now deliver to 80 international destinations!

SPECIFICATIONS:

Voltage Rating: 100~120V or 220~240V AC. (International Voltage)
Store Energy Output: 60 joules Max.
Cycle Time: Charging time at max. energy less than 3 sec.
Wire gauge:
LO : 40 ~30 AWG (0.1~0.3mm / 0.003”~0.012”)
MED: 30 ~24 AWG (0.3~0.5mm / 0.012” ~0.020”)
HI : 24 ~19 AWG (0.5~1.1mm / 0.020” ~ 0.043”)
Thermocouple Type: Suitable for type K / J/ E/ T/ N/ R/ S/ B
Weld cycle: Min 5 to 10 welds / min
Energy Controls: 3 position energy range switch
Energy Indicator: LED display to indicate charging status.
Circuit protect: Circuit protect by 5A breaker
Dimension: 220(W) x 120(H) x 200(D) mm
Weight: 5 KGS / 11 lbs
Suitable use for:
Laboratory / Engineering Dept. /Temperature Test / University / Research Center / Heating Company / Energy Company / Industrial Company / Manufacturer / Working Shop
