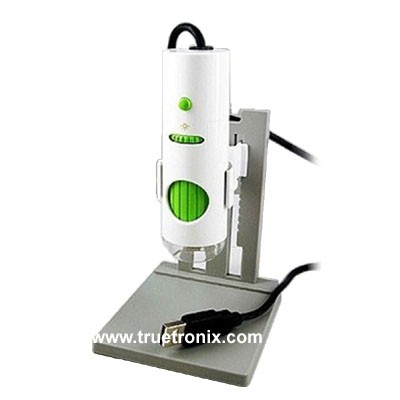

USB ดิจิตอลไมโครสโคปแบบ Polarize 10x-200X ไฟส่องสว่าง 6LEDs

Specifications:

• USB Digital 10-200X Polarized Microscope Features:
• High speed USB 2.0 interface.
• 200X magnification.
• Best from Taiwan

USB Digital 200X Video Polarized Microscope Features:

• The DMP-1113 with Polarize function to reduce the effects of glare and to help eliminate hot spots from highly reflective surfaces and providing uniform illumination to bring out more surface detail with minimal glare.
• High speed USB 2.0 interface.
• Wide ranges of adjustable magnification from 10X to 200X.
• Viewing and capturing the magnified image of your specimens right on your computer screen with VGA (640×480) or SXGA (1280×1024) resolution.
• Active pixel technology for sharp image and accurate color reproduction.
• The built-in 6 White-light LED and adjustable illumination ensure the magnified images are clear and bright.
• Auto exposure, auto gain control and auto white balance for optimum image.
• Software controllable parameters (resolution, color, brightness, saturation).
• High quality lens for true to life undistorted color image.
• Bus powered with low power consumption ideal for portable equipment.
• Hardware snap button.
• UVC for use in Windows XP SP2 and VISTA.

More details on our web site: 4SureTools.com

Specifications:

• Image Sensor: 1/4h Color CMOS image sensor
• Effective Pixels: 1280 (H) x 1024 (V) pixelsi1.3MPj
• Signal Output:: Serial data for USB standard compliant 2.0
• Gain Control: Auto Gain Control (AGC)
• White Balance: Automatic
• Magnification: 10X~ 200X
• Snap Shot Mode: Hardware/Software controllable
• Power Source: 5VDC through USB port
• Power Consumption: 110mA (AVG)
• O/S: Windows XP SP2 and VISTA

System Requirements:

• Pentium 4 Class CPU
• 128 MB of system RAM, or more
• One USB 2.0 port or above
• VGA system with at least 16bit color support
• UVC: Windows XP SP2 and VISTA

Some Applications:

• Skin Check
• Scalp Check
• Industrial Inspection e.g. Printing Circuit
• Board(PCB)inspection,
• Electronics device inspection
• Visual Assistance
• Printing Inspection
• Textile Inspection
• Paper money Inspection
• Jewelry Inspection
• Science Learning
• Digital camera use
