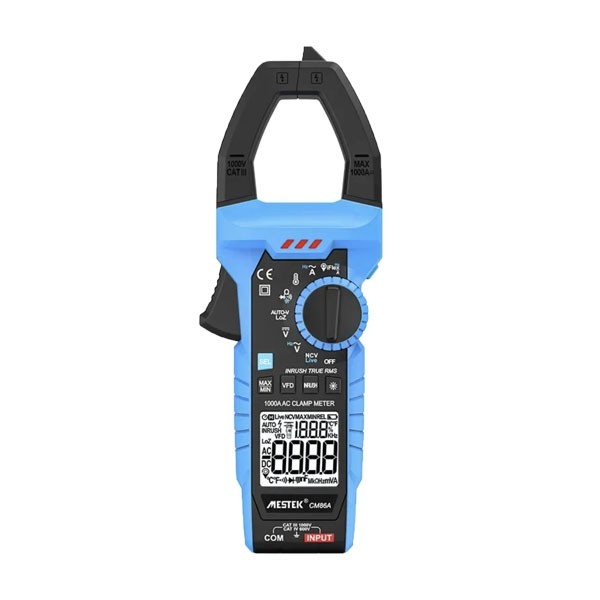

CM86A แคล้มป์มิเตอร์ AC 1000A Digital Clamp Meter AC 1000A

Description:

The 6000-count clamp meter can measure up to 1000A of high current with True-RMS accuracy. It features a VFD function, ideal for precise measurements in variable frequency drive systems. The meter also includes K-type temperature testing. It can detect inrush current during engine startups, helping to analyze power surges. With flexible jaws, it allows easy access to hard-to-reach areas. This makes it a versatile tool for electricians and technicians.

Specifications:

• DC Voltage: 600mV/6V/60V/600V/1000V,±(0.8%+3)
• AC Voltage: 6V/60V/600V/750V,±(1.0%+5)
• DC Current: No
• AC Current: 60A/600A/1000A,±(2.5%+10)
• iFlex flexible clamp: 3000A(Optional),±(3.0%+5)
• Inrush Current: 1000A ±(10%+60)
• Resistance: 600/6kΩ/60kΩ/600kΩ/6MΩ/60MΩ,±(2.0%+5)
• Capacitance: 600nF/6μF/60μF/600μF/6mF/60mF,±(5.0%+10)
• K-type Temperature: -20°C-1000°C/-4“F-1832°F,±(2.0%+2)
• Continuity Buzzer: <30Ω
• Jaw Opening: 42mm
• True-RMS: Yes
• Data Hold: Yes
• Backlight: Yes
• Flashlight: Yes
• K-type Temperature: Yes
• Auto Power off: Yes
• NCV: Yes
• Input Impedance: 1MΩ
• Low Battery Indication: Lower than 2.4V
• Batteries: 2*1.5V AAA
• Size: 254*92*45(mm)
• Weight About: 450g
• Safety Level: EN61010-2-032,CAT Ⅲ 1000V

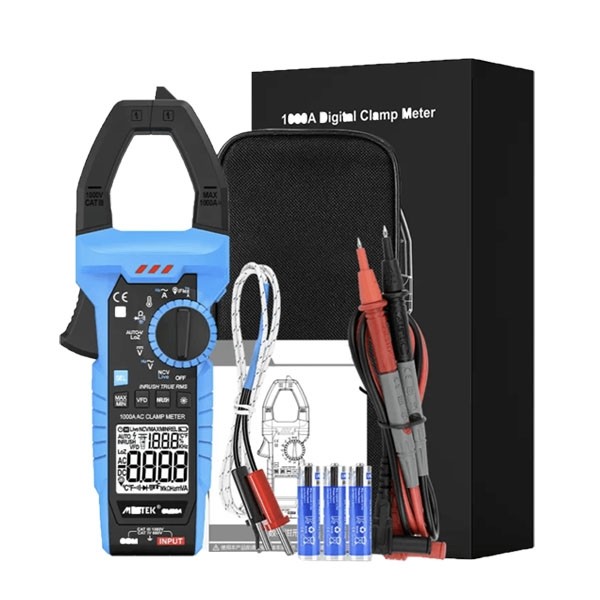

• Standard Accessories: Digital Clamp Meter-Probe-Carrying, Bag-Batteries-User Manual-Color Box
