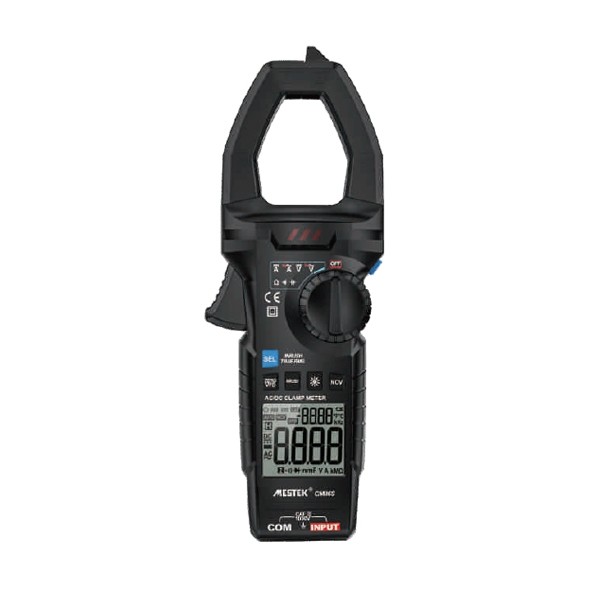

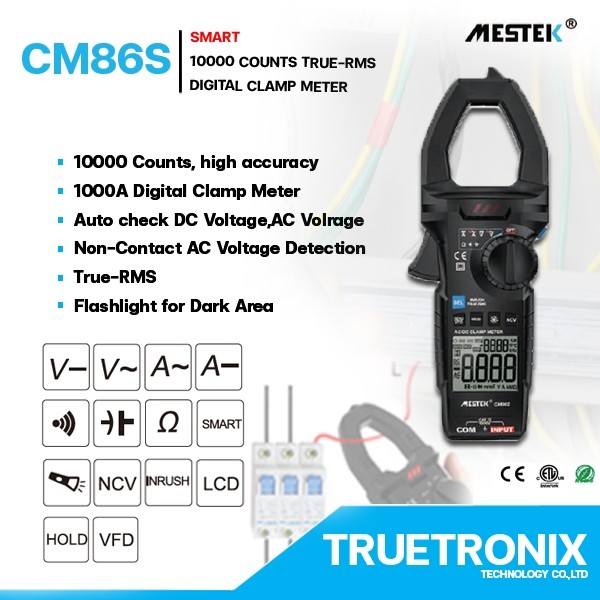

แคลมป์มิเตอร์ CM86S 10000 Counts True-RMS Digital Clamp Meter

Description

Details

SPECIFICATIONS

Model	CM86S
Specifications	Range	Accuracy
DC Voltage	0.5~600.0V	± (0.5%+3)
AC Voltage	1.0~600.0V	± (0.8%+3)
DC Current	10mA~1000A	± (2.5%+8)
AC Current	10mA~1000A	± (3.0%+8)
Resistance	0~10MΩ	± (0.8%+3)
Capacitance	100nF~10mF	± (3.0%+5)

FEATURE

Continuity Buzzer	<30Ω
Jaw Opening	Φ35mm
True-RMS	/
Data Hold	/
Backlight	/
Flashight	/
Auto Power off	/
Non-contact AC Voltage Detetion	/
Input Impedance	1MΩ
Low Battery Indication Lower than	2.4V
General
Batteries	2 x1.5V AAA
Size	254 x 92 x45mm
Weight	About 450g
Safety Level	EN61010-2-032 ,CAT III 600V
Standard Accessories	Digital Clamp Meter Probe- Carrying Bag-K Type Thermocouple -Batteries-User Manual-Color Box
