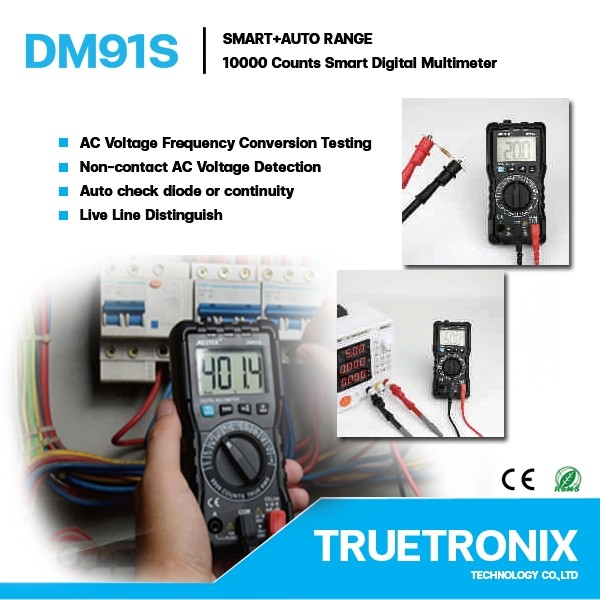

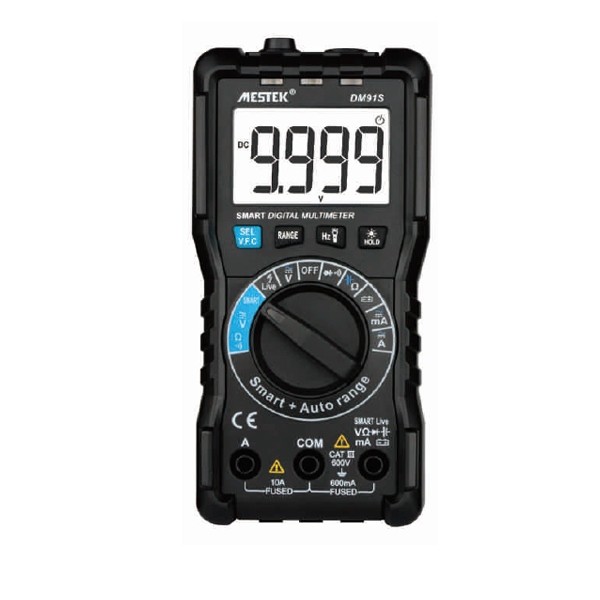

มัลติมิเตอร์ DM91S 10000 Counts Smart Digital Multimeter

Description

Details

FEATURE

Display	10000 Counts
Manual/Auto Range	Smart+Auto range
Backlight	/
Auto power off	/
Datd hold	/
Live Line Distinguish	/
Frequeney Testing by AC Voltage or AC Current Range	/
Fuse Burn Alarm	/
Smart Auto check DC Voltage, AC Voltage, Resistance, Diode, Continuity
General
Batteries	2 x1.5V AAA
Size	150 x 70 x 50mm
Weight	About 195g
Safety Level	EN 61010-2-033,CAT III 600V
Standard Accessories	Multimeter-Probe -Batteries-User Manual-Color Box

SPECIFICATINS

Model	DM91S
Specifications	Range	Accuracy
DC Voltage	999.9mV /9.999V/99.99V /600V	± (0.5%+2)
AC Voltage	0.999V/9.999V/99.99V/600V	± (1.2%+3)
DC Current	999.9µA/9999µA/99.99V/600.0mA/10A	± (1.2%+3)
AC Current	999.9µA/9999µA/99.99V/600.0mA/10A	± (1.5%+3)
Capacitance	9.999nF/99.99nF/999.9nF/9.999µF/ 99.99µF/999.9µF/9.999mF	± (4.0%+3)
Resistance	999.9Ω/ 9.999KΩ /99.99kΩ/999.9KΩ /9.999MΩ	± (1%+2)
	99.99MΩ	± (2.0%+3)
Live	Live Line or Neutral Line Distinguish with one Probe
Continuity/Diode Check	Auto cheek Continuty or Diode
Non-contact AC Votage Detection	yes
Battery Voltsge Tesitng	1.5V
Battery Voltsge Tesitng	9V
