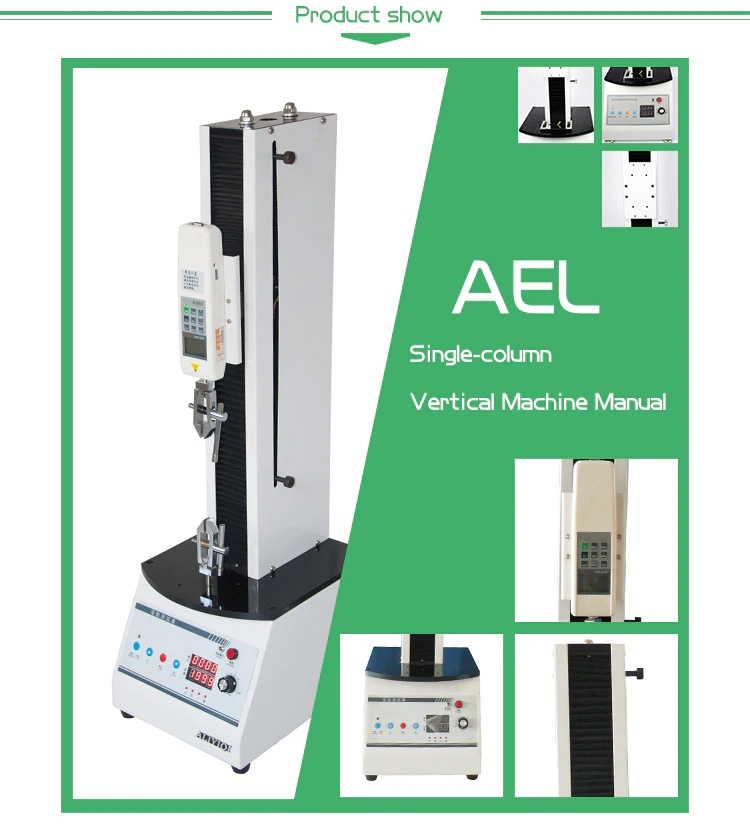

แท่นทดสอบแรงดึงไฟฟ้า AEL Single column Vertical Machine

รายละเอียด

Function:

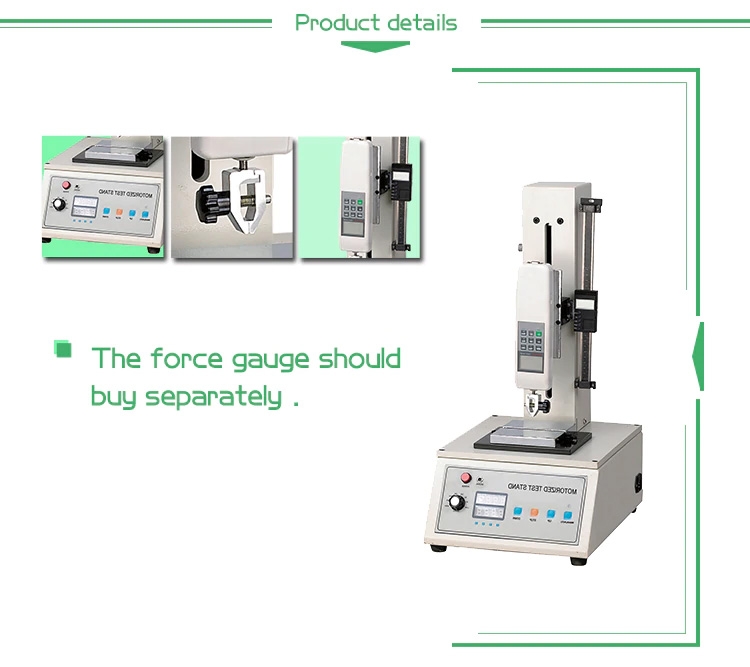

AEL Single column Vertical Machine is force load test platform specially matched for HF and NK series force measurement gauge.
The product is double vertical rod structure, featuring good stability, wide applicable scope and convenience, as well as stepless speed regulation, manual (point) and automatic control switching functions.
Applicable for tests of force load, Insertion and withdrawal, destruction in such industries as rubber and plastic, light industry-textile, constructional door and window, composite materials, electric wire and cable, parts and accessories for automobile, power machinery, scientific research institutes, etc.

Features:

Specifications:

Model	AEL-200-500N	AEL-400-500N	AEL-700-500N	AEL-200-1000N	AEL-400-1000N	AEL-700-1000N
Max load	500N			1000N
Travel	200mm	400mm	700mm	200mm	400mm	700mm
Speed	70~270mm/min
Voltage	AC 100-240V
Outline dimension (mm)	280340780	280340980	2803401270	280340780	280340980	2803401270
Net weight	38KG	40KG	42KG	38KG	40KG	42KG
