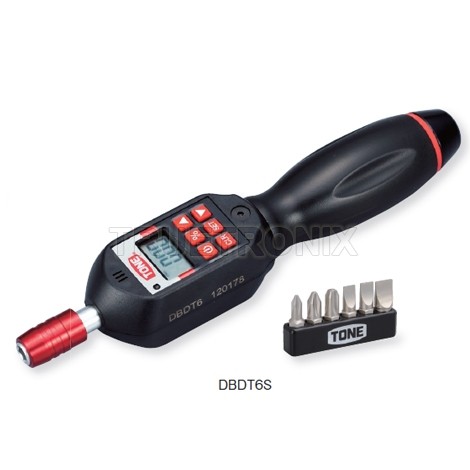

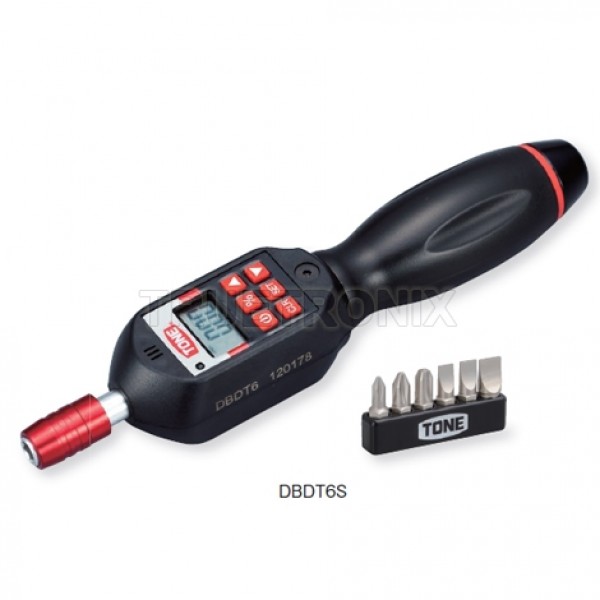

DIGITORQON DBDT-series is a Digital Torque Screwdriver with bit changeable funtion.
Over-Torque preventing function installed. Alert by beeping sound and Red LED when reaching the target torque.
Set the over-torque preventing function arbitarily between 50% and 95% of the target rotque.
SPECIFICATIONS:
- Model : DBDT6S
- Capacity Torque Range (cN.m) Min. ~ Max. : 60 ~ 600
- Unit : cN.m
- A/F of Bit (mm) : 6.35
- Battery : AAA AlkalineX2
- Operating Temperature : 20~42°C
- Storage Temperature : -20~50°C

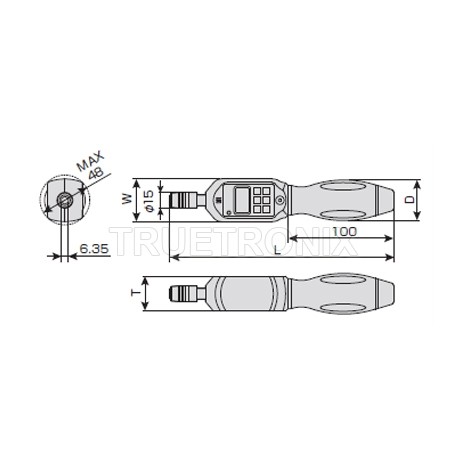

- Dimensions (mm) W : 40
- Dimensions (mm) T : 32
- Dimensions (mm) D : 38.5
- Dimensions (mm) L : 212
- Weigth (kg) : 0.15
- Case Size (mm) : W250xD100xH50
*The Unit on display of DBDT6(cN.m) : 0.01 ubcrenebt between 60 and 99.99, 0.1 increment between 100.0 and 600.0
*The weight values exclude battery.
*Battery life varies depending on conditons.
*Unit:cN.m
*Accuracy:+/-3%
Accessory:
- Screwdriver Bit Set (BTPM6S)
- Screwdriver Bit (+) BT-P1, P2, T3
- Screwdriver Bit (-) BT-M5.5, M6, M8
- Bit Holder BTB6
- Calibration Certificate W/H Traceabikity : 1
- Instruction Manual : 1
- Plastic Case : 1
- AAA Alkaline Battery : 2
