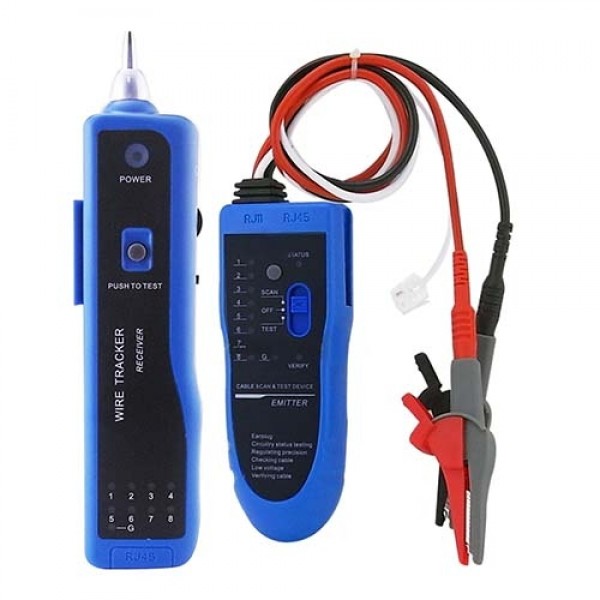

LAN Cable tracker เครื่องทดสอบและค้นหาสายแลน

Features:

• Trace wire in electrical system
• Trace telephone wire/LAN cable
• Verify LAN cable condition
• With Self-protect function. Automatically cuts-off when the voltage is >100V.
• Continuity test
• DC level testing function
• Bright white LED flash light
• Find wire on all types of connected operating Ethernet switch/Router/PC terminal
• Rapidly find the target wire from among plenty of telephone wires
• Rapidly find the target wire from among plenty of network wires
• It can take place of cable tester
• Compare the volume of the"tout"sound and the brightness of the signal indicator, Then you can find the target wire which has the highest volume and brightest indicator.
• Can test RJ-45/RJ-11
• Low battery indication
• Bright white LED flash light
• Cable assignment test: Open,short and cross of LAN cable, 2-wire (RJ11)/4-wire (RJ45) telephone cable
• Cable state testing (2-wire):
  • Line DC detecting, anode and cathode determination
  • Ringing signal detecting
  • Open, short, and cross test

Specifications:

• Max. Working Current
  • Emitter: ≤10mA
  • Receiver: ≤30mA
• Signal transmission format: Multi-frequency impulse
• Signal output electric status: 8Vp-p
• Distance of signal transmission: ≤3km
• Volume Regulate Function: Yes
• Earphone for noise environment: Yes
• Sensitive; induction distance less than 20mm. strong anti-jamming ability
• Storage Temperature: -20 ~ 50°C
• Operating Temperature: -10 ~ 40°C
• Appearance dimension
  • Emitter: 126 x 49 x 34mm
  • Receiver: 175 x 42 x 27mm
  • Whole set: 270 x 165 x 45mm
• Weight
  • Emitter: 0.060kg
  • Receiver: 0.072kg
  • Whole set: 0.420kg
• Power Supply: DC, 9V battery
• Battery life: 50hrs continuous use
