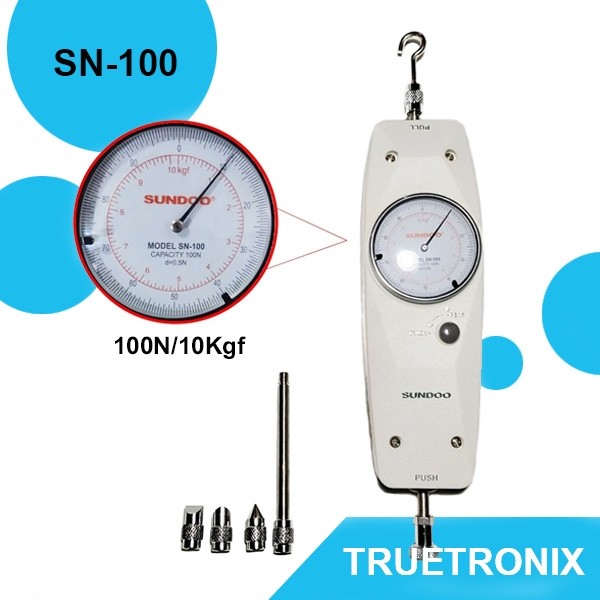

SN-100 เครื่องวัดแรงดึงแรงกด 100N/10Kgf Analog force gauge

รายละเอียด

Analog Push Pull gauge SN Series

SN series Analog Push Pull Gauge with compact size and high accuracy. They are easy to operate and handy. Single click on a knob on the device will convert the movement of the indication needle from the peak force indication (the needle stands still indicating peak force)to the tracking indication(the needle moves in accordance with change of force).As two types of scales (Newton scale and kilogram scale) are available and you can choose the most suitable graduation from the range of 10N(1kgf) to 500N(50kgf) for your measurement purpose.

Specifications:

Model	SN-10	SN-20	SN-30	SN-50	SN-100	SN-200	SN-300	SN-500
Capacity	10N	20N	30N	50N	100N	200N	300N	500N
Capacity	1Kgf	2Kgf	3Kgf	5Kgf	10Kgf	20Kgf	30Kgf	50Kgf
Load Resolution	0.05N	0.1N	0.2N	0.2N	0.5N	1.0N	2.0N	2.0N
Load Resolution	0.005Kgf	0.01Kgf	0.02Kgf	0.02Kgf	0.05Kgf	0.1Kgf	0.2Kgf	0.2Kgf
Accuracy	±1%FS
Weight	~0.6kg
