Data Panel ІТ-09Т เครื่องตรวจวัดรังสี แกมม่า เอ็กซเรย์ จอแสดงผลติดตั้งกับที่

Product feature:

• Information display instrument
• 24-hour continuous operating mode
• Data transfer to the PC
• Audible and light threshold alarms

Descriptions:

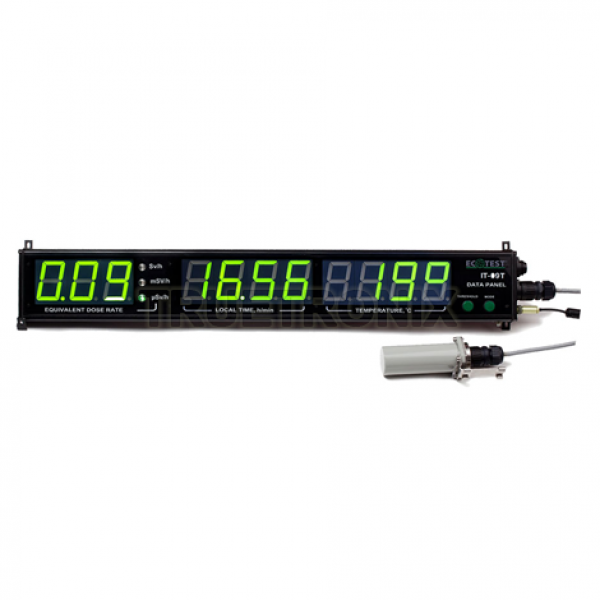

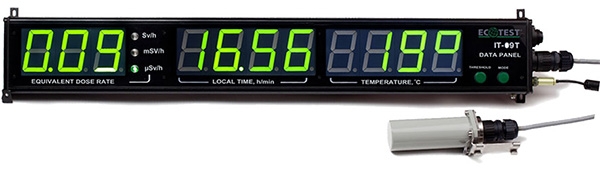

   Displays information about ambient dose equivalent rate of gamma radiation, real time and temperature. The data is communicated from the BDBG-09 detecting unit of gamma radiation, which is included in the delivery kit. IT-09T data panel together with the BDBG-09 detecting unit and RadMonitor software allow creating an automated system for continuous monitoring of background radiation.
   The panel with the units can be placed outside as well as inside for a comprehensive control of the facilities. The distance between the data panel and the unit can reach 50m. All data is continuously transmitted to a personal computer that allows central monitoring of all objects.
Measurement values are clearly visible from a large distance due to the size of the panel – 748x135x40 mm. If threshold levels of gamma radiation dose rate are exceeded, audible and light alarms are actuated.
   IT-09Tdata panel and BDBG-09 detecting unit have been successfully used for many years at nuclear power plants in Ukraine, Bulgaria and Korea. They are actively used by the subdivisions of the Ministry of Emergency Situations and Civil Defense, as well as law enforcement agencies. IT-09T is in operational service with the Ukrainian Army, and is included in the equipment list of the Ukrainian MES units.

Prpose of use

• Display of measurement results of ambient dose equivalent rate (DER) of gamma radiation obtained from the BDBG-09 detecting unit of gamma radiation.
• Real time display.
• Display of ambient temperature.
• Audio and light alarming when threshold levels of gamma radiation DER exceeded.

Specifications

• DER display range – 0.01…107 µSv/h.
• Number of digits for DER display – three.
• Real time display error – not more than ± 0.1 minute per 48 hours.
• Number of digits for real time display – four.
• Ambient temperature display range – from -40 to +50 °С.
• Temperature display error – not more than ±1°С in the range of -15 to +50 °С and not more than ±2°С in the range of -40 to -15 °С.
• Number of digits for temperature display – two.
• Three threshold levels programming in the range of 0.01 µSv/h to 9.99 Sv/h with 0.01 µSv/h discreteness.
• Signaling when threshold levels exceeded – audio (with different soundings for each threshold level), and light (color change of DER measurement display).
• Operation in the network through the RS-485 interface.
• Power supply from industrial network (220 V) through the power adapter.
• Operating mode – 24-hour continuous.
• Distance between the panel and the detecting unit – from 0.5 to 50 m.
• Dimensions – not more than 748x135x40 mm.
• Weight (without the power adapter) – 2.05 kg.
• Mounting method – upright wall-mounted.

Operating conditions

• Air temperature from -20 to +50 °С.
• Relative humidity – up to 95 % at +35 °С, and lower temperatures, non-condensing.
• Atmospheric pressure – from 84 to 106.7 kPа.

Delivery Kit

• IT-09T data panel;

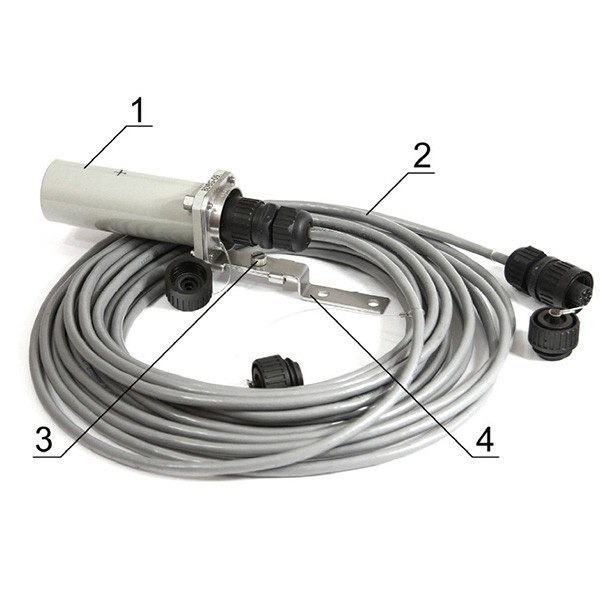

• Kit of the BDBG-09 detecting unit of gamma radiation;
• Connecting cable;
• 220 V power adapter;
• Operating manual;
• Packing box.
