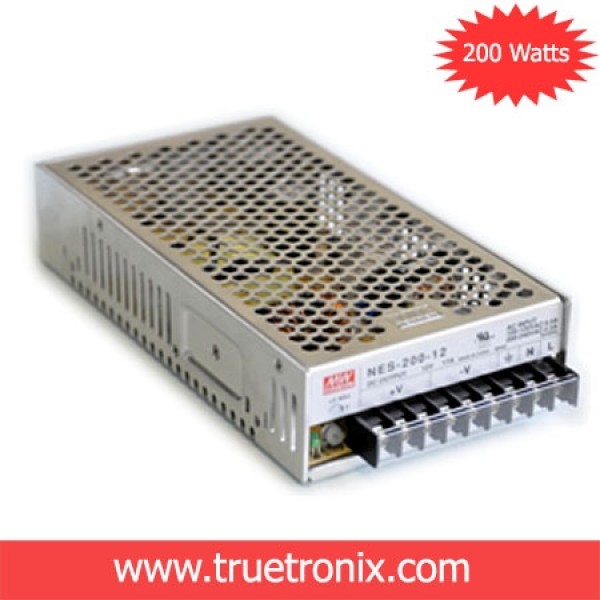

Feature:
- AC input range selectable by switch
- Protections: Short circuit / Overload /Over voltage
- Cooling by free air convection
- Withstand 300vac surge input for 5 second
- Built-in constant current limiting circuit
- 100% full load burn-in test
- LED indicator for power on
- Fixed switching frequency at 90KHz
- Low cost,high reliability
- 2 years warranty
- Net Weight:1000g / 35.3oz
Specifications:
- AC input voltage range: 90-132VAC / 180-264VAC selectable by switch
- AC inrush current: 40A/115VAC ,55A/230VAC
- DC adjustment range: -10%~+10% rated output range
- Overload protection: 105%~150% constant current limiting,auto-recovery
- Over voltage protection: 115%~145% rated output range
- Withstand voltage: I/P - O/P: 3KVAC, I/P - FG: 1.5KVAC, O/P - FG: 0.5KVAC
- Working temperature: -20~+50°C (refer to the derating curve for different models)
- Vibration: 10~500Hz, 2G 10min/1cycle, period for 60 min each along X,Y,Z axes
- Safety standards: UL60950-1 approved
- EMC standards: Design refer to EN61000-4-2, 3, 4, 5, 6, 8,11, ENV50204, EN55024, light industry level, criteria A
- Connection: Terminal block for input and output
- Case dimension (L×W×H): 215x115x50 mm
