Product Description
- Overview Infrared Thermometer measures the body temperature based on the infrared energy quickly get measurement results after positioning properly the temperature probe in the ear canal or forehead. Normal body temperature is a range. The following tables shows that this normal range also varies by site. Therefore, readings from different site should not be directly compared. Tell your doctor what type of thermometer you used to take your temperature and on what part of the body. Also bear this in mind if you are diagnosing yourself.
Measurements | |
Forehead temperature | 36.1 °C to 37.5 °C (97 °F to 99.5 °F ) |
Ear temperature | 35.8 °C to 38 °C (96.4 °F to 100.4 °F) |
Oral temperature | 35.5 °C to 37.5 °C (95.9 °F to 99.5 °F ) |
Rectal temperature | 36.6 °C to 38 °C (97.9 °F to 100.4 °F ) |
Axillary temperature | 34.7 °C - 37.3 °C ( 94.5 °F -99.1 °F ) |

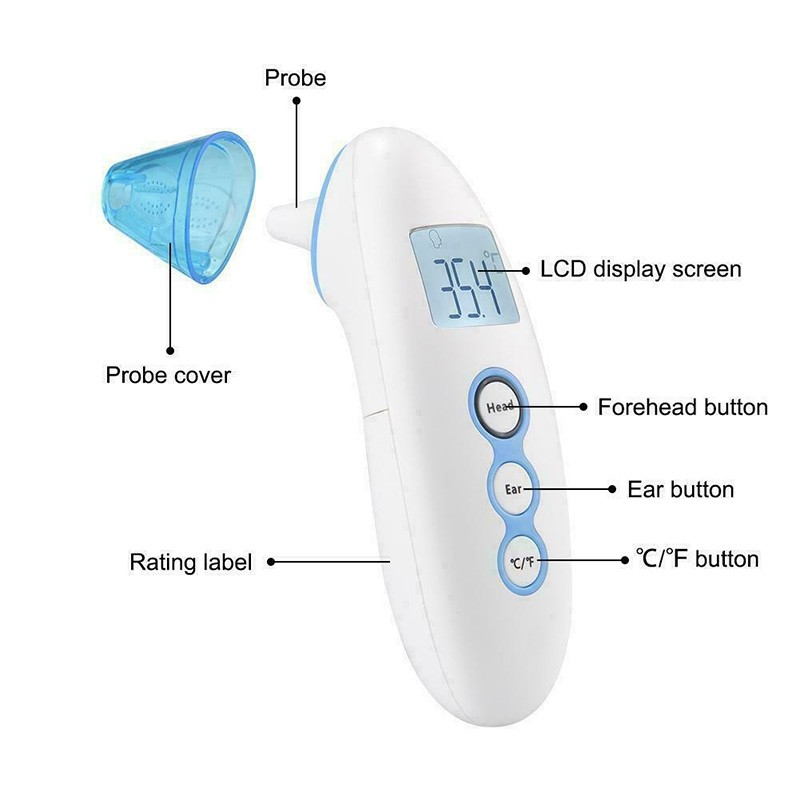

- Structure The thermometer consists of a shell, an LCD, a measure button, a beeper, an infrared temperature sensor, and a Microprocessor.
- Operating principle The infrared temperature sensor collects infrared energy emitted by the eardrum or the skin surface. After being focused by a lens, the energy converted into a temperature reading by the thermopiles and measurement circuits.
- Indications for use The Dual-mode Infrared Thermometer is intended for the measurement of human body temperatures. The forehead mode is indicated for people of all ages and the eardrum mode is indicated for people above three months old.
- Contraindications Do not use the thermometer if the ear is infected with otitis or suppuration.
Features
- Accurate and reliable
- Multi-functional, can measure ear, forehead, room, milk, water and object temperature
- 35 sets of memories, easy to recall
- Switching between mute and un-mute mode
- Fever alarm function
- Switching between °C and °F
- Auto shut-down and power-saving
Specifications

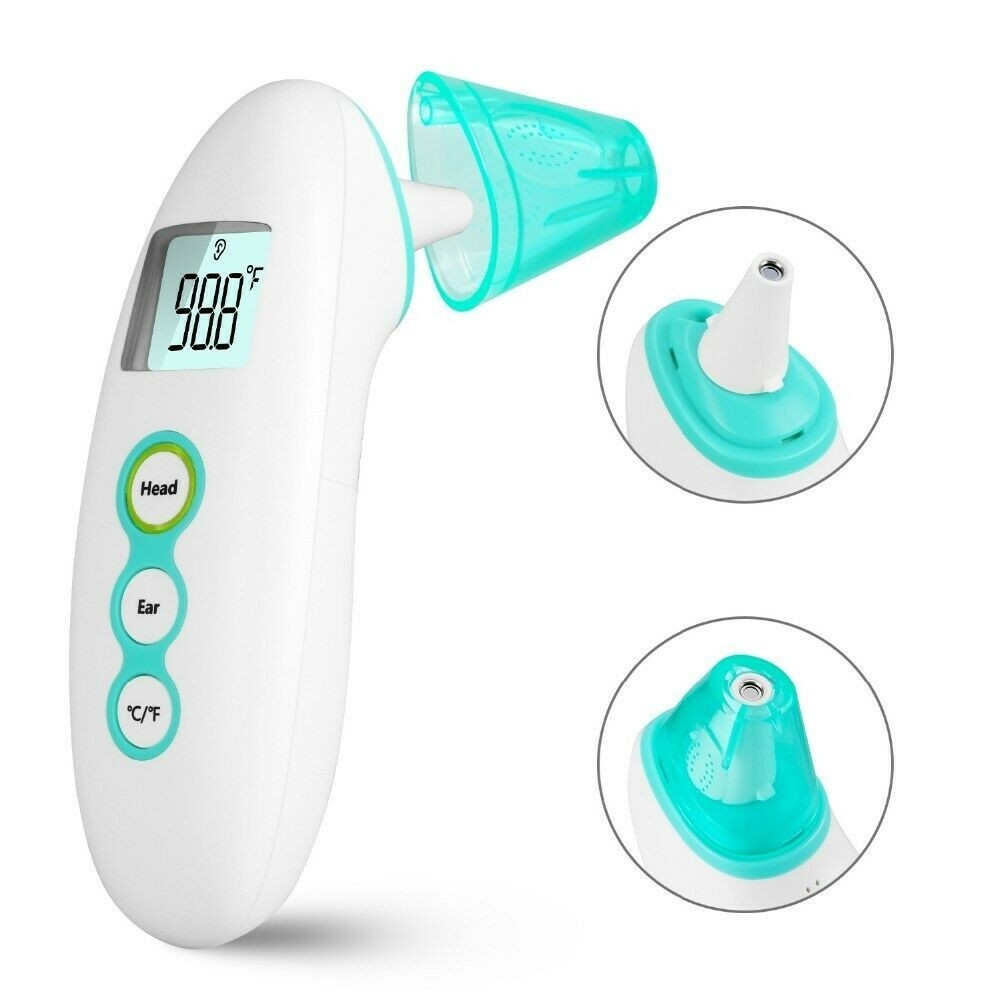

Product name | Dual-mode infrared thermometer | |
Power supply | DC1.5V×2 | |
Measurement range | Ear & Forehead: 32.0°C-42.9°C (89.6°F-109.2 F) | |
Object: 0°C-100°C (32°F-212°F) | ||
Accuracy (Laboratory) | Ear & Forehead mode | +0.2 C /t0.4°F |
Object mode | +1.0"C/1.8°F | |
Display resolution | 0.1 C/ F | |
Automatic shutdown | 10st1s | |
Memory | 35 groups of measured temperature. | |
Operational conditions | Temperature: 10°C-40°C (50°F-104°F)/ Humidity: 15-95%RH, non-condensing Atmospheric pressure: 86-106 kPa | |
Battery | 2"AAA, can be used for more than 3000 times | |
Weight & Dimension | 62g (without battery), 122x59.2x41.3mm |
