MKS-U Radiation Survey Device Multipurpose Dosimeter-Radiometerv เครื่องวัดรังสี

รายละเอียด

ТУ У 22362867.005-2000
ТУ У 33.2-22362867-005-01-2003 (military accepted)
Number U1355-07 in State Register for Measuring Instruments
Hygienic conclusion of the State Sanitary-Hygienic Expertise # B-7.03/140 of October 24, 2000

Description:

A full-range radiation survey device in the field environment.

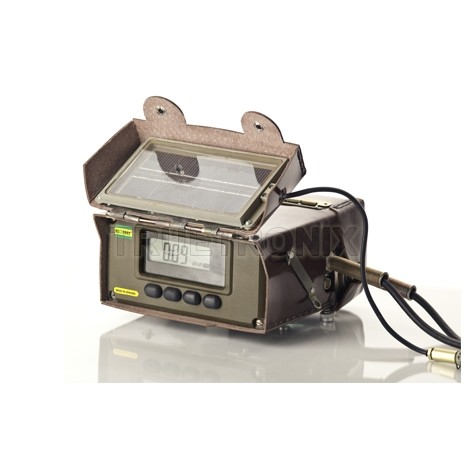

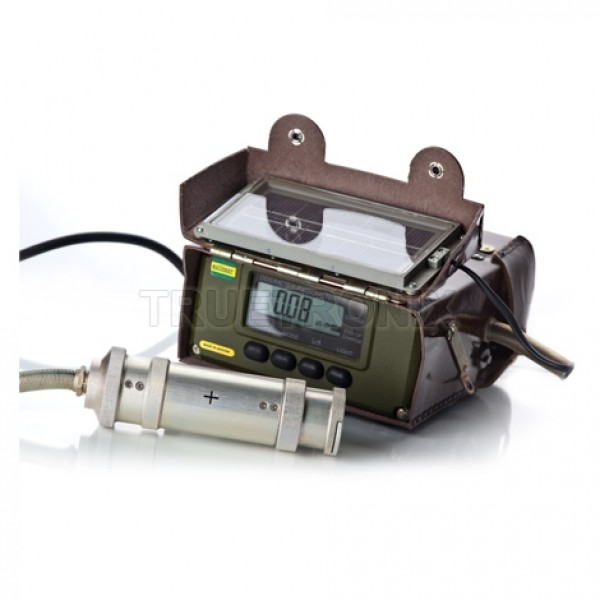

MKS-U measures gamma radiation dose rate from the background to emergency levels. Availability of the remote detector enables measuring emergency levels of gamma radiation dose rate at a distance of 30 m. The device operates under the conditions of atmospheric precipitations, dusty conditions and when the remote detector is submerged in the water at 0.5 m depth. Storage battery of the device is charged with the help of the built-in charger from integral solar battery, from automobile battery or from industrial network. More

The device has the nonvolatile memory, which can store up to 4096 measurement results. The recorded results can be viewed on the display and transferred to the PC.

The device can be assembled as requested by the customer.

Ukrainian peacekeepers of the 19th NBC battalion have successfully used MKS-U in the Middle East. In severe desert conditions the MKS-U gained an excellent reputation of a reliable, precise and trouble-free device.

MKS-U is in operational service with the Ukrainian Army, it is included in the equipment list of the Ukrainian MES units, supplied for the purposes of the Security Service of Ukraine, Ministry of Internal Affairs of Ukraine, the Border Guard Service of Ukraine, etc.

Since 2002 according to the international technical assistance programs MKS-U devices have been supplied to the Border Guard Service of Ukraine, Internal Troops of the Ministry of Internal Affairs of Ukraine, the Ministry of Emergencies of Ukraine, the Border Services of Kazakhstan and Uzbekistan.

Purpose of Use:

Measurement of ambient dose equivalent rate of gamma and X-ray radiation (DER).
Measurement of ambient dose equivalent of gamma and X-ray radiation (DE).
Measurement of surface beta-particles flux density.
Measurement of accumulation time of gamma and X-ray radiation ambient dose equivalent.

Features:

Automatic setting of measurement intervals and ranges.
Audio signaling of each registered gamma-quantum or beta-particle.
Display and control keys backlight if operating in the dark.
Storage battery (five AA nickel-cadmium batteries) charging by the built-in charger from:
- – integral heliobattery;
- – 12 V automobile battery;
- – 220 V/50 Hz industrial network by voltage converter.
Multilevel indication of power supply discharge.
Ability to operate under atmospheric precipitation, dusty conditions and at immersion of the remote detector in water at 0.5 m depth.
Measurement of gamma radiation DER action levels by placing the remote detector at up to 30 m distance.

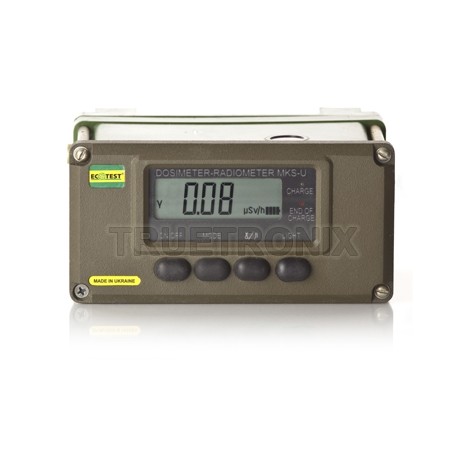

Analog indicator of radiation intensity.
Up to 4096 measurement results recording in the nonvolatile memory with further transfer through infrared port to the computer.
Viewing the recorded measurement results on the display.
Ability to operate with the personal protective equipment (rubber gloves).
Wide operating temperature range (-40…+50 °C).
Display resistant to the temperature of up to +95 °C.

The device includes:

Gas-discharge Geiger-Muller counters without return run of counting response
Silicon beta radiation detector
Emergency scintillation gamma radiation detector (CsI-scintillator-photodiode)

Specifications:

Measurement of gamma and X-ray radiation parameters:

Measurement range of ambient dose equivalent rate with the combined detecting unit	0.1 μSv/h … 10 Sv/h
Measurement range of ambient dose equivalent rate with the remote detector	Sv/h	0.01…100
Measurement range of gamma and X-ray radiation DE with the detector built in the control panel and main relative error	mSv	0.001…9 999
	%	±15
Main relative permissible error limit of DER measurement when calibrated to 137Cs:
– for the combined detecting unit	±(15+2/H(10))%, where H(10) is a numeric value of measured DER equivalent to μSv/h
– for the remote detector	±(15+200/H(10))%, where H(10) is a numeric value of measured DER equivalent to mSv/h
Energy range of measurement	MeV	0.05…3.0
Measurement range of DE accumulation time and accuracy of measurement	1min…100h
	±1min per 100h

Measurement of beta radiation parameters:

Measurement range of surface beta-particles flux density	1/(cm2×min)	10…200 000
Energy range of measurement	MeV	0.3…3.0
Main relative permissible error limit of beta-particles flux density measurement when calibrated to 90Sr+90Y	±(20+200/φβ)%, where φβ is a numeric value of measured flux density equivalent to part./(cm2×min)
Measurement time intervals	seconds	2…50
Storage battery life	hours	100
Operating temperature range(for digital display)	°С	-40…+50
Operating temperature range(for digital display)	°С	(-40…+95)
Weight of the control panel with the detecting unit	kg	2.4
Dimensions of the control panel	mm	160x125x80
Weight of the dosimeter’s kit in packing case	kg	8
Dimensions of the dosimeter’s kit in packing case	mm	554x420x123

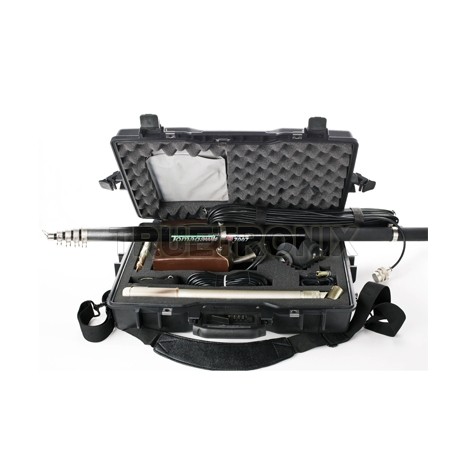

Complete Delivery Kit:

control panel with non-detachable combined detecting unit of gamma and beta radiation;
heliobattery;
short telescopic tube for the detecting unit with a clip to be fixed on a belt;
12 V cable (10 m) used for charging from the automobile battery;
220/12 V adapter;
AA nickel-cadmium batteries (5 pcs.);
headphones;

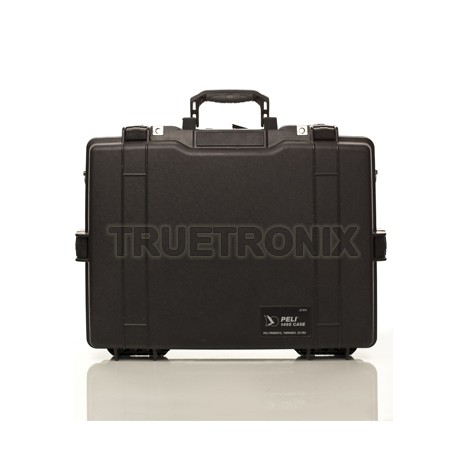

packing case;
operating manual;
logbook;
emergency detecting unit kit: remote gamma radiation detector with a 30 m cable; telescopic tube (5 m) with a cable hanger for cable winding; telescopic tube case;
spare parts;
exchange infrared port adapter and software (on customer's request).

Special-Purpose Delivery Kit:

A special-purpose delivery kit is suggested for the fire fighting services and does not include: emergency detecting unit kit and heliobattery.
The detecting unit is fixed to the housing of the device control panel.
The storage battery is charged with the built-in charger from: 12 V automobile battery; 220 V/50 Hz industrial network by voltage converter.
Weight of the control panel with the detecting unit - 2.4 kg
Dimensions of the control panel - 160x125x80 mm.
