Single Y Automatic Soldering Machine

รายละเอียด

รายละเอียด

Description:

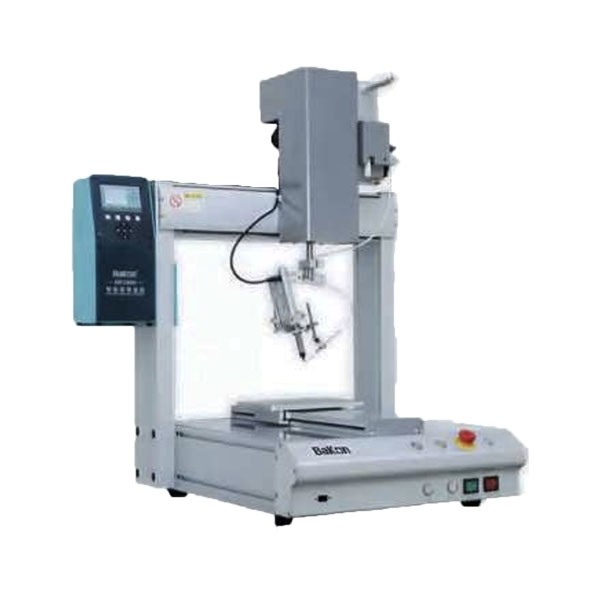

The Single Y Automatic Soldering Machine It operates by processing one workpiece at a time, providing stable performance and precise soldering for electronic components such as capacitors, resistors, pin headers, cables, shielding covers, and other perforated parts. This machine is ideal for applications where steady, accurate soldering is required and where the production speed can be moderate.

Specifications:

Machine Size: L763 × W610 × H780 mm
Single Working Volume: 460 mm × 610 mm × 108.5 mm
Drive Mode: Dual-axis precision stepper drive
Adjustable Speed: 1 - 800 mm/sec
Total Weight: 52 kg
Power System: Stepper motor, rotating motor (optional)
Repeatability: ±0.1 mm / ±0.05 mm
Workbench Load Capacity: 8 kg
Machine Load Capacity: 2 kg
Control System: Three-axis control system
Processing File Capacity: Up to 255 files
File Storage Capacity: Up to 999 files, up to 8000 points per single file
Supporting Documentation: CAD / CorelDRAW
Power Supply: 100 - 200V AC
