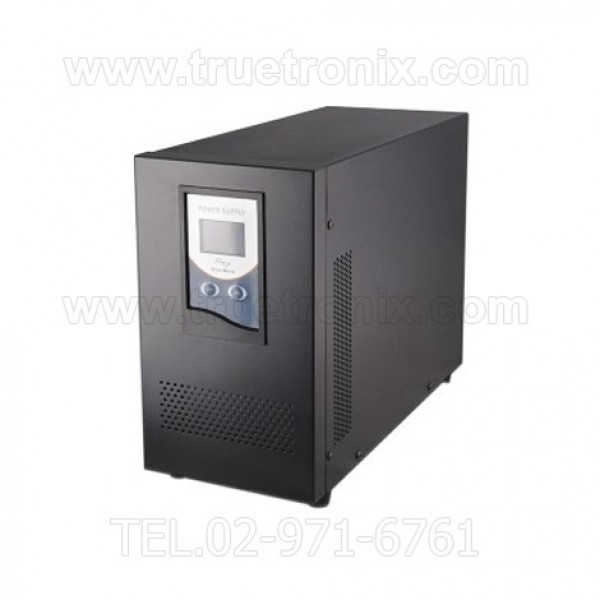

EP2000 Tower Series เครื่องแปลงไฟ 12V 24V 48V 96V เป็น 220V

รายละเอียด

CHARACTERISTICS:

Extremely low return noise and no disturbance to talking quality.
Special charging system , designed for better protection of battery life.
Short circuit, overload, over voltage and low battery protection.
With standard on-line structure (three ports) and can be used as inverter specification
Compatible with generators and suitable for harsh environment where power voltage is extremely unstable.
RS232 port, smart power management software, automatic file saving and shutting down at power abnormalities.
Use-friendly interface, LED simulative display, LCD digital display and computer screen display of inverter operation status.

SPECIFICATIONS:

MODEL		EP20-300T	EP20-600T	EP20-800T	EP20-1KT	EP20-1.5KT	EP20-2KT	EP20-3KT	EP20-4KT	EP20-5KT	EP20-6KT	EP20-7KT	EP20-10KT
Default Battery System Voltage		12VDC	12VDC/24VDC			24VDC		48VDC			96VDC
INVERTER OUTPUT	Reted Power	300W	600W	800W	1000W	1500W	2000W	3000W	4000W	5000W	6000W	7000W	10000W
	Waveform	Pure sine wave
	Nominal Output Voltage RMS	100V/110V/120VAC 220V/230V/240VAC(±10% RMS)								220V/230V/240VAC(±10% RMS)
	Output Frequency	5OHz/60Hz±0.3 Hz
	Inverter Efficiency(Peak)	>80%
	Line Mode Efficiency	>95%
	Power Factor	1.0
	Typical Transfer Time	Typical 2~6ms ,10ms max
AC INPUT	Voltage	100V/110V/120VAC 220V/230V/240VAC								220V/230V/240VAC
	Selectable Voltage Range	96~132VAC 145~275VAC(For Personal Computers)								145~275VAC(For Personal Computers)
	Frequency Range	50Hz/60Hz (Auto sensing 44~68Hz)
BATTERY	Nominal Input Voltage	12VDC	12VDC/24VDC			24VDC		48VDC			96VDC
	Minimum Start Voltage	10.5VDC /21.0VDC/42VDC/84VDC
	Low Battery Alarm	10.5±0.3V /21VDC±0.6V/42VDC±1.2V/84VDC±2.4V
	Low Battery Cutoff	10.0±0.3V/20VDC±0.6V/40VDC±1.2V/80VDC±2.4V
	High Voltage Alarm	15.5±0.3V/31VDC±0.6V/62VDC±1.2V/124VDC±2.4V
	High Battery Voltage Recover	15.0±0.3V/30VDC±0.6V/60VDC±1.2V/120VDC±2.4V
CHARGER	Charger Voltage	14V±0.2V/28V±0.4V/56V±0.8V/112V±1.2V
	Overcharge Protection S.D.	15.5VDC/31VDC/62VDC/124VDC
	Maximum Charge Current	15A~25A
BYPASS & PROTECTION	Nominal Input Frequency	50Hz or 60Hz
	Overload Protection (SMPS Load)	IPS automatically shutdown if overload exceeds 120% ofnormal value for 30 seconds IPS automatically resume work if overload comes back to rated load
	Output Short Circuit Protection	FUSE				Circuit breaker
	Bypass Breaker Rating	10A				15A		30A			50A
	Max Bypass Current	10A				15A		30A			50A
MECHANICAL SPECIFICATIONS	Dimensions (WHD)	140182380				255385470				260750570
	Net Weight (kg)	6.5	11	11.5	12	24.2	27.4	29.5	33	35	41	47	53
	Shipping Dimensions(WHD)	215285465				325473595				4801030720
	Shipping Weight (kg)	7.5	12	12.5	13.2	26.9	30.1	33.2	35.7	49	55	61	67
OTHER	Operation Temperature Range	0°C to 40°C
	Audible Noise	60dB MAX
	Display	LED or LCD Optional
	Standard Warranty	1 year
